| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

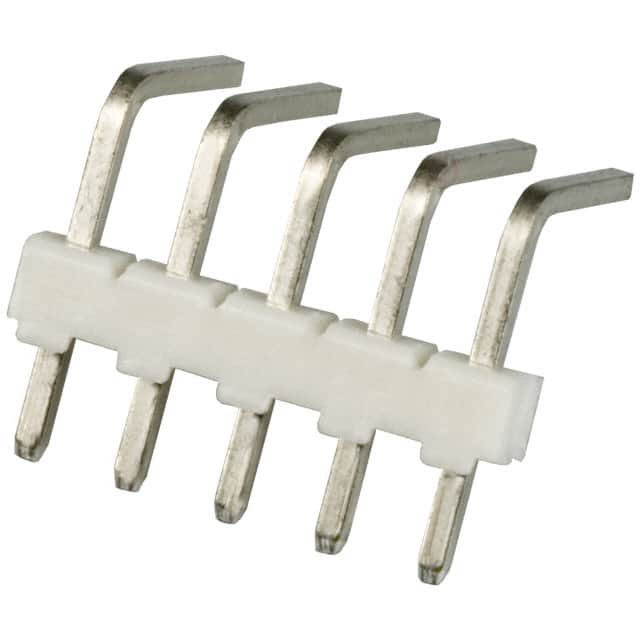

The TE Connectivity 3-644457-5 is a 5-position, single-row, unshrouded header designed for board-to-cable/wire applications. It features male square pins with a 2.54mm pitch and through hole right angle mounting for compact PCB layouts. The contacts are made of copper alloy with a tin finish of 150µin (3.81µm). The insulator is natural thermoplastic with a UL94 V-0 flammability rating. The header is rated for 250VAC and operates over -55°C to 105°C. This connector is suitable for wire-to-board interconnections where a low-profile right-angle interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.69 | $0.69 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.49 | $0.49 |
| 1,000+ | $0.46 | $0.46 |
| 2,500+ | $0.43 | $0.43 |
| 5,000+ | $0.41 | $0.41 |
| 10,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions, all loaded, in a single row.
2.54mm (0.100").
250VAC.
Through hole, right angle.
-55°C to 105°C.
Tin, 150µin (3.81µm) thickness.
