| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

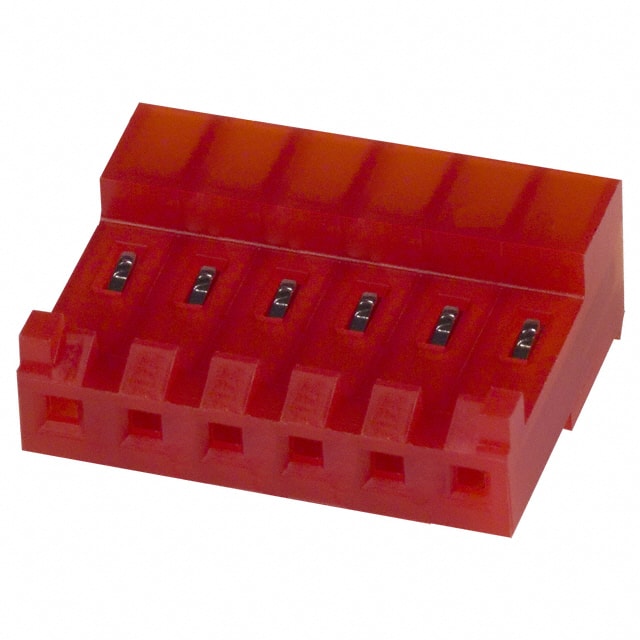

The TE Connectivity 3-643819-6 is a 6 position rectangular connector receptacle designed for free hanging (in-line) mounting. It uses IDC (Insulation Displacement Connection) termination for 22 AWG discrete or ribbon cable, simplifying wire attachment without stripping.
This connector has a single row of 6 female socket contacts with a 3.96mm (0.156 inch) pitch. The contacts are finished with tin (80.0 microinches / 2.03 micrometers) for reliable conductivity. The housing is red and includes a closed end design with a polarizing key for correct mating orientation. A locking ramp fastening type secures the connection.
Typical applications include internal wiring in appliances, industrial controls, and other equipment where a compact, reliable wire-to-board or wire-to-wire connection is needed. The IDC termination reduces assembly time and cost compared to crimp or solder methods.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.53 | $0.53 |
| 25+ | $0.52 | $0.52 |
| 1,000+ | $0.49 | $0.49 |
| 2,500+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in a single row.
The pitch is 3.96mm (0.156 inches).
It uses IDC (Insulation Displacement Connection) termination.
It is designed for 22 AWG wire.
It is a free hanging (in-line) connector.
The contacts have a tin finish with a thickness of 80.0 microinches (2.03 micrometers).
Yes, it includes a polarizing key and a closed end design.
