3-643817-6 6-position IDC receptacle connector from TE Connectivity. Features 3.96mm pitch, tin contacts, and free hanging mounting.
Mfr Part #:

3-643817-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
6-position IDC receptacle connector from TE Connectivity. Features 3.96mm pitch, tin contacts, and free hanging mounting.
✓ Total Stock: 20 pcs
$ Price Range: $0.46 - $0.79

3-643817-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 2014 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-643817-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Storage Temperature
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

3-643817-6 Description

Short technical summary and product information.

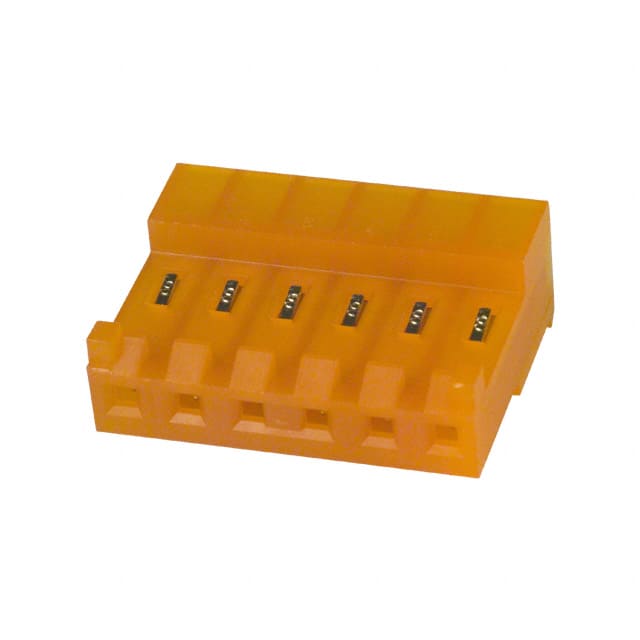

This TE Connectivity 3-643817-6 is a 6-position, single-row rectangular receptacle connector designed for IDC (Insulation Displacement Connection) termination. It features a 3.96mm (0.156 inch) pitch and accepts 18 AWG discrete or ribbon cable. The contacts are female sockets with a tin finish (80µin thickness), providing reliable conductivity and corrosion resistance.



The connector has a free hanging (in-line) mounting style with a locking ramp fastening mechanism for secure mating. The orange housing is a closed-end design with a polarizing key to prevent misalignment. It is suitable for wire-to-board or wire-to-wire applications in power distribution, signal wiring, and appliance interior connections.



Packaged as a single unit, this connector is a direct replacement for applications requiring a compact, cost-effective IDC interconnect solution. The tin-plated contacts offer good solderability and durability for repeated use.

3-643817-6 Quick Information

Product Type: Receptacle Connector
Series: MTA-156
Canonical Name: TE Connectivity 3-643817-6 6-Position 3.96mm Pitch IDC Receptacle Connector
Subcategory: Free Hanging Receptacle

3-643817-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

3-643817-6 Estimated Pricing

Qty Low High
1+ $0.79 $0.79
10+ $0.67 $0.67
25+ $0.63 $0.63
50+ $0.60 $0.60
100+ $0.57 $0.57
250+ $0.54 $0.54
500+ $0.51 $0.51
1,000+ $0.49 $0.49
2,500+ $0.46 $0.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-643817-6 Features

  • 6-position IDC receptacle connector.
  • 3.96mm pitch for compact design.
  • Free hanging mounting with locking ramp.
  • Tin-plated contacts for reliable conductivity.
  • Accepts 18 AWG discrete or ribbon cable.

3-643817-6 Applications

  • Ideal for wire-to-board connections.
  • Used in power distribution applications.
  • Suitable for signal wiring in appliances.
  • Common in automotive interior systems.

3-643817-6 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the connector have?

6 positions.

What is the pitch of the connector?

3.96mm (0.156 inches).

What is the mounting type?

Free hanging (in-line) with locking ramp fastening.

What termination method does the connector use?

IDC (Insulation Displacement Connection).

What wire gauge is compatible?

18 AWG wire.

What is the contact finish?

Tin, with a thickness of 80µin (2.03µm).
