| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,932 pcs
|
1932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

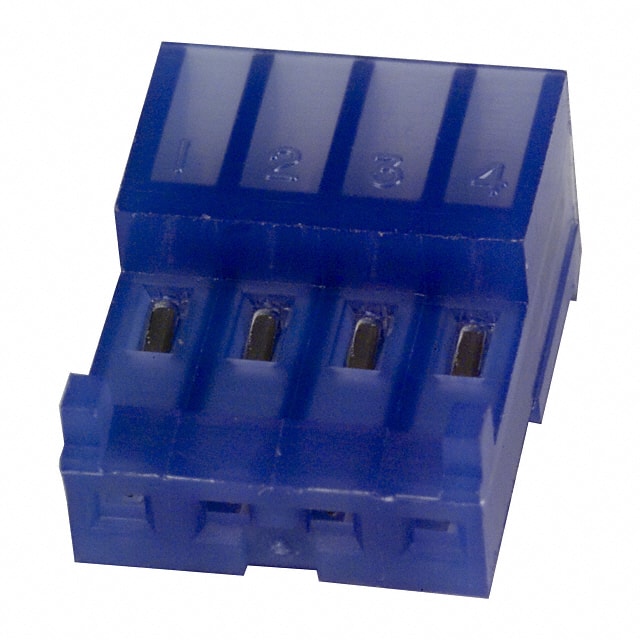

The TE Connectivity 3-643815-4 is a rectangular connector receptacle featuring 4 positions arranged in a single row with a 2.54mm (0.100") pitch. It uses IDC (Insulation Displacement Connection) termination for 26 AWG wire, supporting both discrete and ribbon cable types. The connector is free hanging (in-line) with a right-angle cable exit and includes a locking ramp fastening type for secure mating.
The contacts are female sockets with a tin finish of 80.0µin (2.03µm). The housing is blue and features a closed end design. This connector is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is suitable for internal wiring applications where a compact, reliable IDC connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.33 | $0.33 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.28 | $0.28 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.20 | $0.20 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle (female socket) connector.
It has 4 positions in a single row.
The pitch is 2.54mm (0.100").
It supports 26 AWG wire.
It uses IDC (Insulation Displacement Connection) termination.
It is free hanging (in-line) with a right-angle cable exit.
The contacts have a tin finish with a thickness of 80.0µin (2.03µm).
