| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

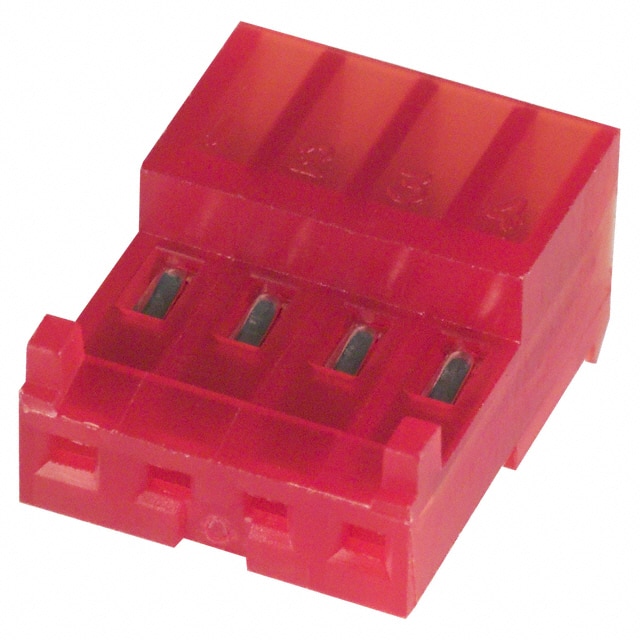

The TE Connectivity 3-643813-4 is a 4 position IDC (Insulation Displacement Connector) receptacle designed for 22 AWG wire. It features a 2.54mm (0.100") pitch and a single row of female socket contacts with a tin finish (80.0µin / 2.03µm). The connector is free hanging (in-line) with a right angle cable exit and uses a locking ramp for secure mating.
This closed end receptacle is suitable for both discrete and ribbon cable applications. The IDC termination method allows for quick, reliable connections without stripping wire insulation. The red housing provides easy visual identification.
Typical applications include internal wiring in electronic equipment, control systems, and other low-voltage signal interconnections where a compact, reliable connector is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.33 | $0.33 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.28 | $0.28 |
| 1,000+ | $0.25 | $0.25 |
| 2,500+ | $0.23 | $0.23 |
| 5,000+ | $0.23 | $0.23 |
| 10,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 3-643813-4 has 4 positions in a single row.
The pitch is 2.54mm (0.100").
It is designed for 22 AWG wire.
It uses IDC (Insulation Displacement Connection) termination.
Free hanging (in-line), right angle.
Tin, with a thickness of 80.0µin (2.03µm).
