| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

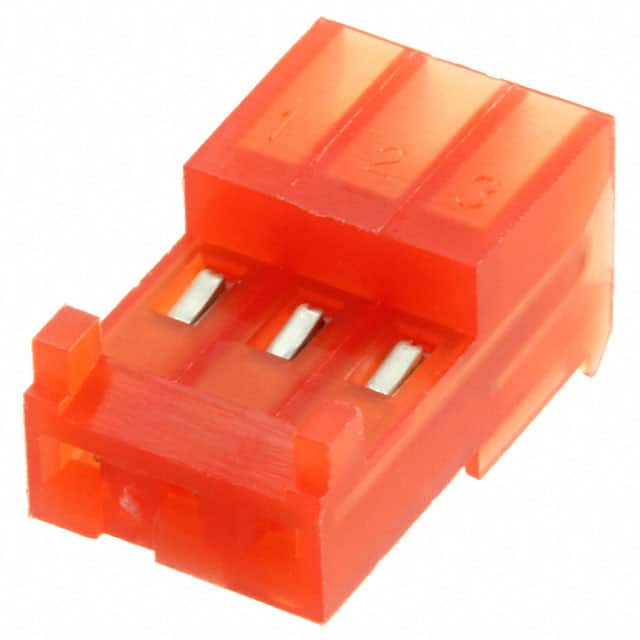

The TE Connectivity 3-643813-3 is a 3-position IDC receptacle connector designed for terminating 22 AWG discrete or ribbon cable. It features a single row of female socket contacts with a 2.54mm (0.100") pitch. The connector uses a locking ramp fastening mechanism for secure mating and is offered in a red closed end housing.
The contacts are tin plated with a thickness of 80.0µin (2.03µm), providing reliable conductivity. The right angle mounting style allows for free hanging (in-line) cable assemblies. The insulation displacement contact (IDC) termination method simplifies wire attachment without stripping, making it suitable for quick cable assembly in prototyping and production environments.
This connector is part of TE Connectivity's rectangular connector family and is commonly used in internal wiring, cable harnesses, and electronic device interconnect applications. The closed end design prevents accidental contact exposure at the rear of the connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.29 | $0.29 |
| 25+ | $0.26 | $0.26 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.18 | $0.18 |
| 1,000+ | $0.17 | $0.17 |
| 2,500+ | $0.16 | $0.16 |
| 5,000+ | $0.15 | $0.15 |
| 10,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 3 positions arranged in a single row.
The pitch is 2.54mm (0.100").
It is designed for free hanging (in-line) mounting with a right angle orientation.
It accommodates 22 AWG wire.
The contacts are tin plated with a thickness of 80.0µin (2.03µm).
It uses a locking ramp fastening mechanism.
It uses insulation displacement contact (IDC) termination.
