| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
257 pcs
|
257 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

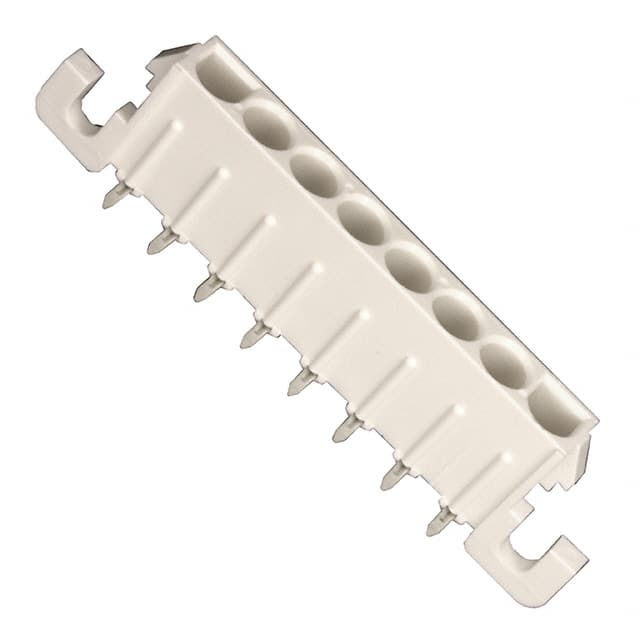

The TE Connectivity 3-643236-0 is an 8 position single row rectangular connector header designed for board to cable/wire applications. It utilizes female socket contacts with a tin finish of 30.0µin (0.76µm) and features a 6.35mm (0.250") pitch. The connector has a through hole right angle mounting style with solder termination.
The housing is made of a material with a UL94 V-0 flammability rating and is natural in color. It includes a locking ramp fastening type for secure mating and a mounting flange for additional mechanical stability. The insulation height is 9.14mm (0.360") and the contact length is 4.06mm (0.160"). All 8 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.36 | $8.36 |
| 20+ | $4.55 | $4.55 |
| 80+ | $4.48 | $4.48 |
| 200+ | $4.39 | $4.39 |
| 360+ | $4.32 | $4.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 6.35mm (0.250").
It has 8 positions, all loaded.
It is through hole, right angle mounting.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
It uses a locking ramp fastening type.
The insulation height is 9.14mm (0.360").
The material flammability rating is UL94 V-0.
