| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

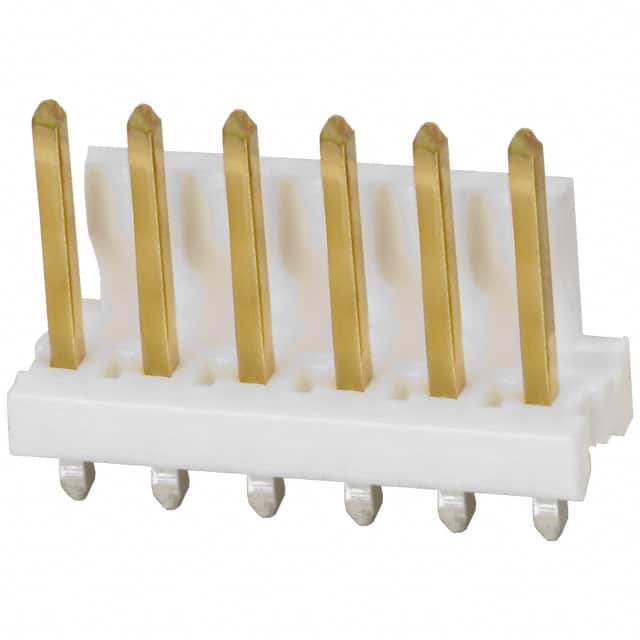

The TE Connectivity 3-641208-6 is a rectangular connector header designed for board-to-cable/wire applications. It features 6 positions in a single row with a 3.96mm (0.156") pitch, making it suitable for power and signal interconnect in various electronic assemblies.
The connector uses a shrouded housing with a friction lock mechanism for secure mating. Contacts are male pins made of copper alloy with a tin finish (30µin thickness). The insulation is natural-colored thermoplastic, glass filled, rated UL94 V-0. Through-hole mounting with solder termination provides reliable mechanical attachment to PCBs.
Electrical ratings include a voltage rating of 600VAC and an operating temperature range of -55°C to 105°C. Current rating varies by wire gauge used. Overall contact length is 0.650" (16.51mm) with a mating contact length of 0.400" (10.16mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.63 | $2.63 |
| 10+ | $2.32 | $2.32 |
| 25+ | $2.13 | $2.13 |
| 100+ | $1.93 | $1.93 |
| 250+ | $1.84 | $1.84 |
| 500+ | $1.68 | $1.68 |
| 1,000+ | $1.67 | $1.67 |
| 3,000+ | $1.60 | $1.60 |
| 6,000+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions in a single row.
The pitch is 3.96mm (0.156 inches).
The current rating varies by the wire gauge used.
The voltage rating is 600VAC.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
The insulation material is rated UL94 V-0.
