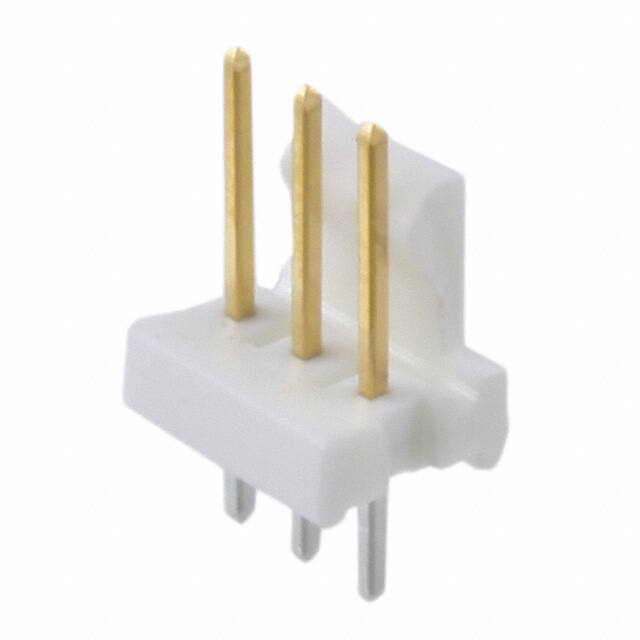

3-641126-3 3-641126-3 is a 3 position, 2.54mm pitch, single row, shrouded header with male pins. It features a friction lock and is rated for 250VAC operation.
Mfr Part #:

3-641126-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
3-641126-3 is a 3 position, 2.54mm pitch, single row, shrouded header with male pins. It features a friction lock and is rated for 250VAC operation.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.61 - $1.17

3-641126-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-641126-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

3-641126-3 Description

Short technical summary and product information.

The 3-641126-3 from TE Connectivity is a 3 position, single row, shrouded header with male pin contacts. The pitch is 2.54mm (0.100") and the header is designed for board-to-cable/wire applications. It features a 1-wall shrouded design with a friction lock for secure mating. The contacts are made of copper alloy with a tin finish and are square in shape. The overall contact length is 0.535" (13.59mm) with a contact length of 7.49mm. The insulation height is 7.75mm (0.305") and the housing is made of thermoplastic with a UL94 V-0 flammability rating, natural color. The header is through-hole mounted with solder termination. It is rated for 250VAC and has an operating temperature range of -55°C to 105°C. Current rating varies by wire gauge. This header is suitable for use in applications requiring a reliable board-to-wire connection with a secure locking mechanism.

3-641126-3 Quick Information

Product Type: Header, Male Pins
Canonical Name: 3 Position, 2.54mm Pitch, Single Row, Shrouded Header, Male Pin, Through Hole, Friction Lock
Subcategory: Male Pin Headers

3-641126-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-641126-3 Estimated Pricing

Qty Low High
1+ $1.17 $1.17
10+ $0.99 $0.99
100+ $0.84 $0.84
500+ $0.75 $0.75
1,000+ $0.72 $0.72
5,000+ $0.64 $0.64
10,000+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-641126-3 Features

  • 3 position single row shrouded header.
  • 2.54mm pitch for compact designs.
  • Friction lock for secure mating.
  • Rated for 250VAC operation.
  • Tin plated copper alloy contacts.

3-641126-3 Applications

  • Board-to-wire connections in industrial equipment.
  • Used in consumer electronics power supplies.
  • Suitable for control signal applications.

3-641126-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3-641126-3 header have?

3 positions.

What is the pitch of this header?

2.54mm (0.100")

What is the voltage rating of this header?

250VAC.

What is the mounting type for the 3-641126-3?

Through hole, solder termination.

What is the operating temperature range?

-55°C to 105°C.

Is the header shrouded?

Yes, shrouded with 1 wall.

What is the contact material?

Copper alloy with tin plating.
