| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,400 pcs
|
5400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

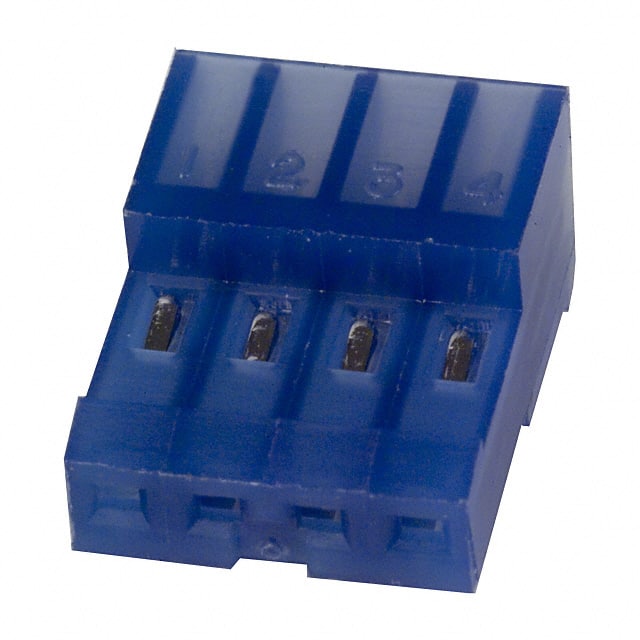

The TE Connectivity 3-640442-4 is a rectangular connector receptacle designed for discrete or ribbon cable applications. It features 4 positions in a single row with a 2.54mm (0.100") pitch. The connector uses IDC (Insulation Displacement Contact) termination for 26 AWG wire, simplifying assembly without stripping. The contacts are tin-plated female sockets with a thickness of 80.0µin (2.03µm). The housing is blue and includes a locking ramp fastening mechanism for secure mating. The closed end design prevents contact with sharp wire ends. Mounting is free hanging (in-line) with a right angle orientation, suitable for space-constrained applications. This connector is a general-purpose interconnect for signal or low-power applications. The tin finish provides good conductivity and solderability. The IDC termination is reliable for mass termination of ribbon cables or discrete wires. The connector is RoHS3 compliant, REACH unaffected, and has MSL 1 unlimited moisture sensitivity level (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.30 | $0.30 |
| 100+ | $0.28 | $0.28 |
| 250+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 2,500+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions in a single row.
The pitch is 2.54mm (0.100 inches).
Free hanging (in-line) with right angle orientation.
26 AWG wire, suitable for discrete or ribbon cable.
IDC (Insulation Displacement Contact) termination.
Tin with a thickness of 80.0µin (2.03µm).
Yes, it features a locking ramp fastening type.
