| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
81 pcs
|
81 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

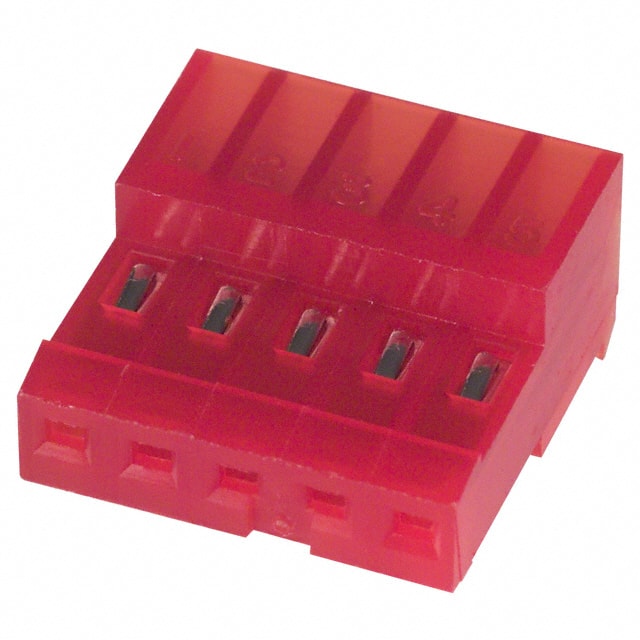

The TE Connectivity 3-640440-5 is a 5 position rectangular connector receptacle designed for wire-to-board or wire-to-wire applications. It features an IDC (Insulation Displacement Connection) termination for 22 AWG discrete or ribbon cable, enabling quick and reliable connections without stripping the insulation.
With a pitch of 2.54mm and a single row configuration, this connector is suitable for compact designs. The contact type is a female socket with a tin finish of 80 microinches (2.03µm), providing good conductivity and corrosion resistance. The red insulator and locking ramp fastening ensure secure mating and easy identification.
This connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). Note: Compliance status is based on unverified data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.33 | $0.33 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.22 | $0.22 |
| 2,500+ | $0.22 | $0.22 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100 inches).
Free hanging (in-line) with right angle orientation.
22 AWG wire.
IDC (Insulation Displacement Connection).
Tin with 80 microinches thickness.
Red.
