| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
471 pcs
|
471 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Type |

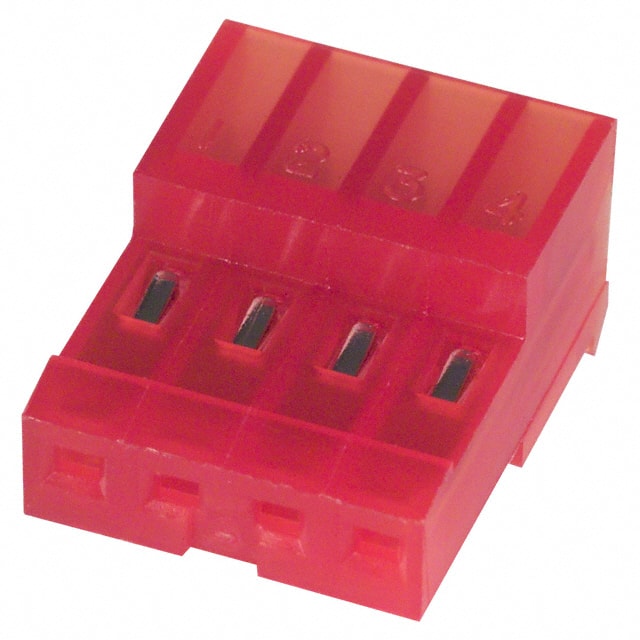

The 3-640440-4 is a rectangular connector from TE Connectivity. It is a 4-position receptacle with a single row of female socket contacts. The connector is designed for free hanging (in-line) mounting with a right angle orientation. Termination is via IDC (Insulation Displacement Connection) for 22 AWG discrete or ribbon cable.
The contact finish is tin with a thickness of 2.03µm. The connector features a locking ramp fastening type for secure mating. The housing is red and includes a closed end feature. The pitch between contacts is 2.54mm (0.100 inches).
This connector is suitable for applications requiring a compact, reliable interconnection for wire-to-board or wire-to-wire connections. It is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited). The part is also REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.30 | $0.30 |
| 100+ | $0.28 | $0.28 |
| 250+ | $0.25 | $0.25 |
| 1,000+ | $0.22 | $0.22 |
| 2,500+ | $0.21 | $0.21 |
| 5,000+ | $0.20 | $0.20 |
| 10,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions in a single row.
2.54mm (0.100 inches).
Free hanging (in-line), right angle.
IDC (Insulation Displacement Connection).
22 AWG.
Tin with a thickness of 2.03µm.
Red.
