| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

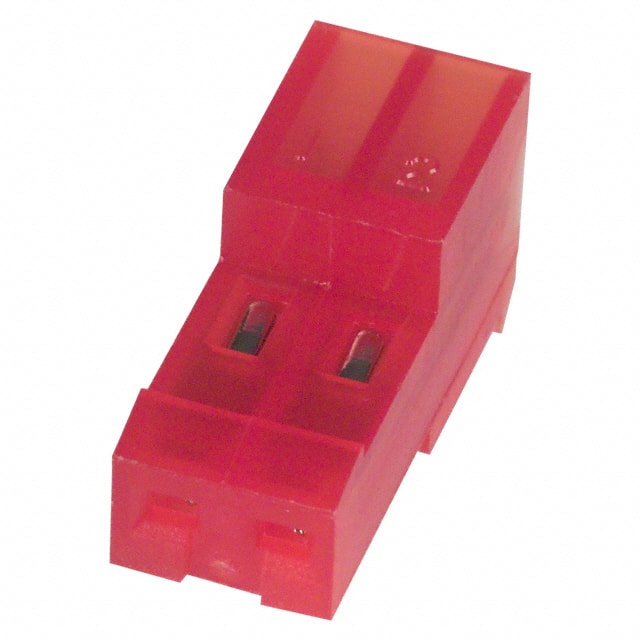

The TE Connectivity 3-640440-2 is a 2-position rectangular connector receptacle designed for free hanging, right angle mounting. It uses insulation displacement contact (IDC) termination for 22 AWG discrete or ribbon cable, ensuring reliable wire-to-board connectivity without the need for wire stripping.
This connector features a 2.54mm (0.100") pitch, a single row of female sockets, and tin-plated contacts with 80.0µin (2.03µm) of finish for moderate corrosion resistance. The closed-end housing is red, with a locking ramp fastening type to secure mating connections.
Prepared for use in wire gauge 22 AWG applications, this connector supports both discrete and ribbon cable types. Its IDC termination method allows for quick, reliable assembly, making it suitable for prototyping and medium-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.15 | $0.15 |
| 25+ | $0.14 | $0.14 |
| 50+ | $0.13 | $0.13 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
2 positions in a single row
22 AWG
Insulation Displacement Contact (IDC) for discrete or ribbon cable
Red
Tin with 80.0µin (2.03µm) thickness
