| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,970 pcs
|
1970 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
283 pcs
|
283 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

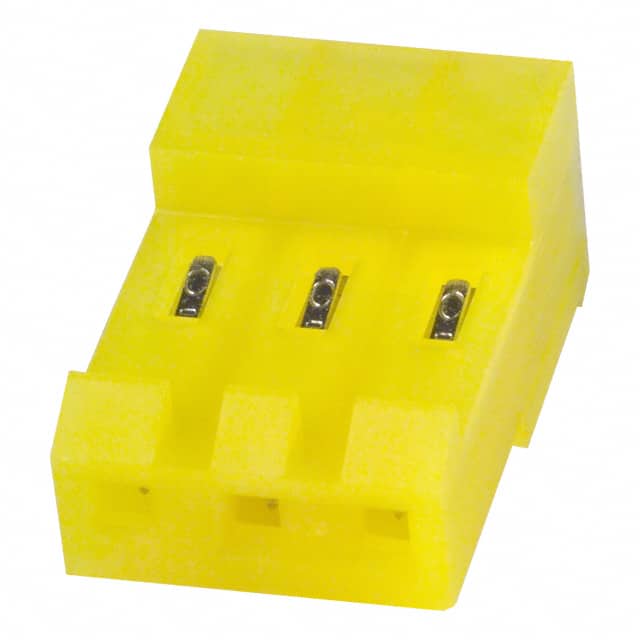

The TE Connectivity 3-640427-3 is a 3-position IDC receptacle connector designed for free hanging (in-line) mounting. It features a 3.96mm (0.156") pitch and accepts 20 AWG discrete or ribbon cable. The contacts are female sockets with tin plating (80µin/2.03µm thickness) for reliable conductivity. The connector uses a locking ramp fastening mechanism for secure mating. The housing is yellow and features a closed end design. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for wire-to-board or wire-to-wire applications where a compact, reliable IDC termination is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 10+ | $0.35 | $0.35 |
| 25+ | $0.31 | $0.31 |
| 100+ | $0.30 | $0.30 |
| 250+ | $0.23 | $0.23 |
| 1,000+ | $0.21 | $0.21 |
| 2,500+ | $0.20 | $0.20 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
3.96mm (0.156").
IDC (Insulation Displacement Connection).
20 AWG.
Tin with 2.03µm thickness.
Free hanging (in-line).
Locking ramp.
