| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

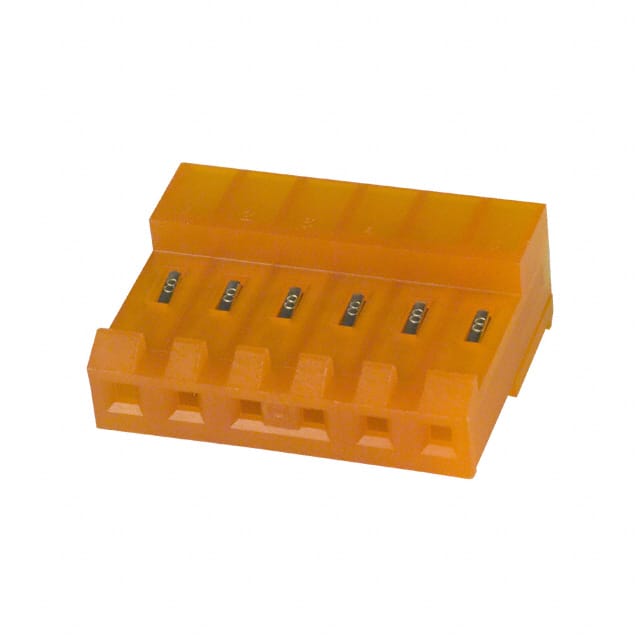

The TE Connectivity 3-640426-6 is a 6-position rectangular connector receptacle designed for insulation displacement connection (IDC) of discrete wires. It features a 3.96mm pitch, making it suitable for standard wire-to-board applications. The connector accepts 18 AWG wire and provides a female socket contact type with a tin finish of 80.0µin thickness.
This receptacle employs a locking ramp fastening mechanism to ensure secure mating with the corresponding header. It is designed for free hanging (in-line) mounting, which allows flexible installation in cable assemblies. The orange housing includes a closed end feature to prevent over-insertion of wires.
The connector is intended for use in environments where reliable wire termination is required. The IDC termination method simplifies assembly by eliminating the need for wire stripping and soldering. The tin contact finish offers good conductivity and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.64 | $0.64 |
| 25+ | $0.59 | $0.59 |
| 100+ | $0.56 | $0.56 |
| 250+ | $0.49 | $0.49 |
| 1,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
3.96mm (0.156 inches).
Free hanging (in-line).
18 AWG.
Tin, with 80.0µin thickness.
IDC (Insulation Displacement Connection).
Orange.
