| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

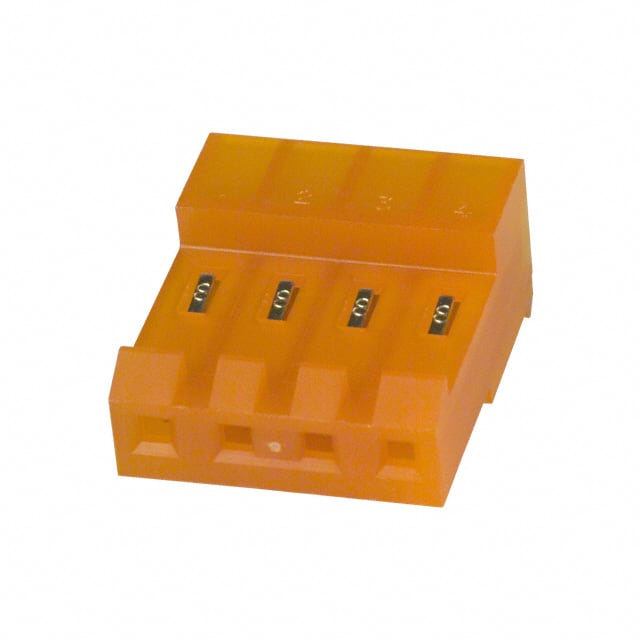

The TE Connectivity 3-640426-4 is a 4 position IDC receptacle connector designed for discrete wire applications. It features a 3.96mm (0.156") pitch and accepts 18 AWG wire. The connector uses a locking ramp fastening type for secure mating and has a closed end design. Contacts are female sockets with a tin finish (80.0µin / 2.03µm). The housing is orange. Termination is via IDC (Insulation Displacement Connection) for quick wire termination without stripping. The connector is free hanging (in-line) mount, suitable for cable-to-board or cable-to-cable connections in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.50 | $0.50 |
| 25+ | $0.42 | $0.42 |
| 100+ | $0.40 | $0.40 |
| 250+ | $0.35 | $0.35 |
| 1,000+ | $0.32 | $0.32 |
| 2,500+ | $0.30 | $0.30 |
| 5,000+ | $0.30 | $0.30 |
| 10,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions.
The pitch is 3.96mm (0.156 inches).
The connector accepts 18 AWG wire.
The termination style is IDC (Insulation Displacement Connection).
The mounting type is Free Hanging (In-Line).
