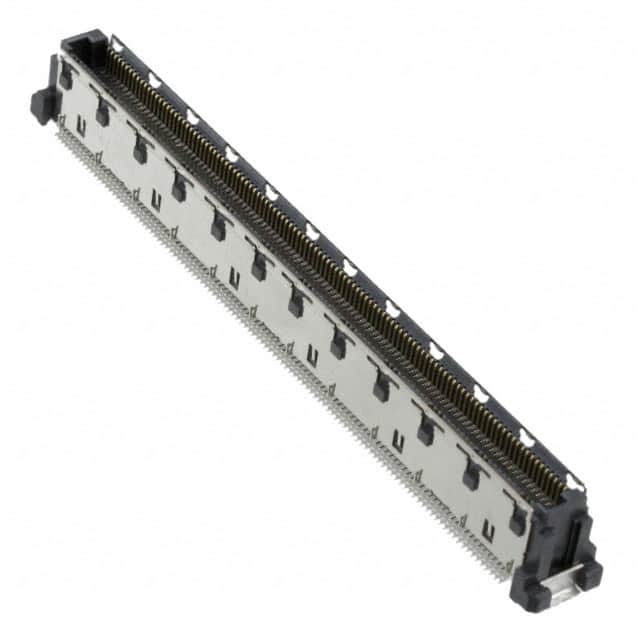

The TE Connectivity 3-6318491-6 is a Free Height series, 0.50mm centerline board-to-board plug connector designed for mezzanine/stacking applications. It offers 220 positions arranged in two rows with an in-line contact layout. The connector uses copper alloy contacts with 8.00 microinch gold plating on the mating area, ensuring reliable signal integrity.
Key mechanical features include a vertical PCB mount angle, integral board guide and ground plate for alignment and EMI shielding, locating posts for accurate placement, and a keyed housing to prevent mis-mating. The mated stacking heights are 5mm and 8mm, and the board-to-board stack height range is 8.00mm to 12.00mm.
This connector is packaged in a hard tray and is compatible with reflow solder processes up to 245°C. It is RoHS and ELV compliant, making it suitable for environments requiring lead-free manufacturing. The part is used in board-to-board and mezzanine connections for personal systems, computers, networking, and communications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.10 | $26.10 |
| 10+ | $25.38 | $25.38 |
| 30+ | $19.23 | $19.23 |
| 60+ | $18.42 | $18.42 |
| 120+ | $17.86 | $17.86 |
| 270+ | $17.06 | $17.06 |
| 510+ | $16.89 | $16.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 220 positions arranged in two rows.
The contact pitch is 0.50mm (0.0197 inches).
The connector uses a surface mount (SMD) termination.
The mating area contact finish is gold with a thickness of 8.00 microinches (0.203 micrometers).
The mated stacking heights are 5mm and 8mm. The board-to-board stack height range is 8.00mm to 12.00mm.
Yes, according to the manufacturer datasheet, this connector is RoHS compliant.
This connector is compliant with RoHS and ELV standards.
