| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,680 pcs
|
1680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline (Pitch) | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height Above Board | |
| Housing Color | |
| Housing Material | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Package Type | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Solder Tail Contact Plating Material | |
| Stack Height | |
| Standard Package Qty | |
| Tape & Reel | |
| Termination Method | |
| UL | |
| UL Flammability Rating | |
| Voltage Rating |

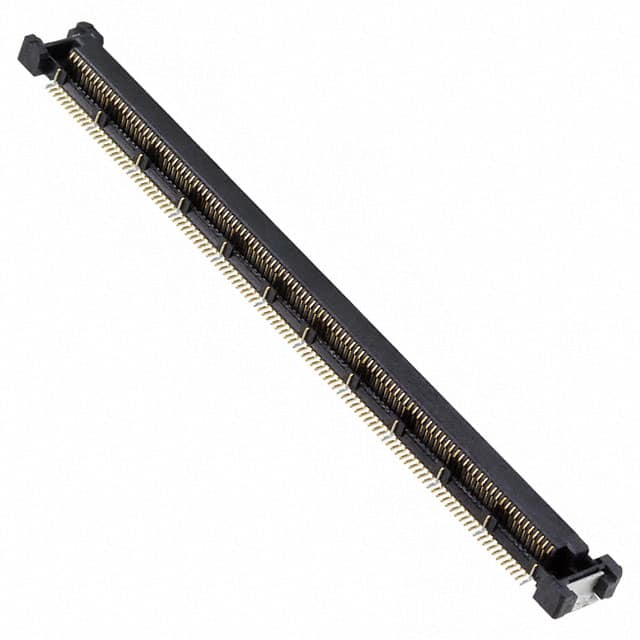

The TE Connectivity 3-6318490-6 is a high-density receptacle connector designed for parallel board-to-board mezzanine configurations. It offers 220 positions arranged in 2 rows with a 0.5mm pitch, enabling compact and space-efficient designs. The connector features a surface mount termination method and gold-plated contacts with 8 microinches of plating thickness for reliable signal integrity.
This connector supports mated stacking heights of 5mm and 8mm, making it suitable for various mezzanine spacing requirements. It is rated for 0.5A per contact and 50VAC, with a dielectric withstanding voltage of 200VAC. The housing is made of high temperature thermoplastic with UL 94V-0 flammability rating, ensuring robust performance in demanding environments.
The 3-6318490-6 includes a board guide and ground plate for improved alignment and grounding. It is packaged in hard trays with a standard quantity of 210 pieces. The operating temperature range is -40°C to 80°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.31 | $20.31 |
| 10+ | $17.27 | $17.27 |
| 30+ | $15.98 | $15.98 |
| 60+ | $15.21 | $15.21 |
| 120+ | $14.48 | $14.48 |
| 270+ | $13.68 | $13.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.5mm.
It has 220 positions arranged in 2 rows.
The current rating is 0.5A per contact.
The voltage rating is 50VAC.
It uses surface mount (SMD) termination.
The operating temperature range is -40°C to 80°C.
It is packaged in hard trays with a standard quantity of 210 pieces.
