| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

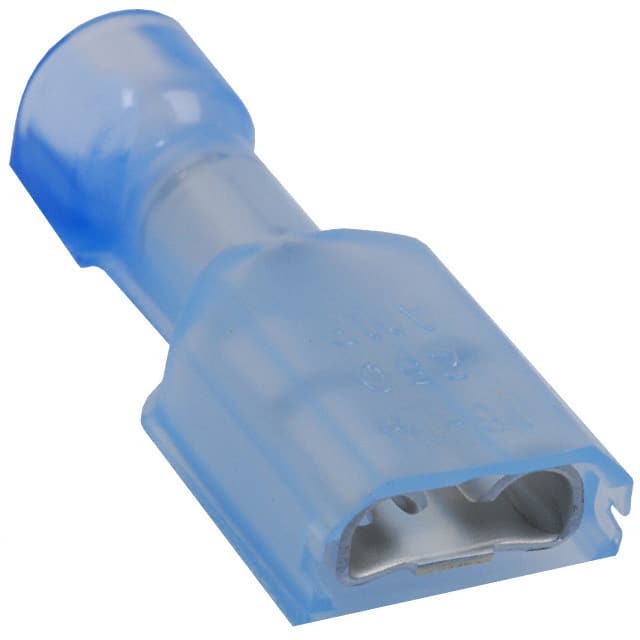

The TE Connectivity 3-520406-2 is a female quick disconnect terminal designed for 14-16 AWG wire. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it compatible with standard 0.250" male quick disconnect tabs. The terminal uses a crimp termination method for secure wire attachment and is fully insulated with a blue housing. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. With a free hanging (in-line) mounting type, this terminal is suitable for wire-to-wire or wire-to-board connections requiring quick disconnect capability. The overall length is 21.72mm (0.855").
| Qty | Low | High |
|---|---|---|
| 2,200+ | $0.24 | $0.24 |
| 4,400+ | $0.22 | $0.22 |
| 6,600+ | $0.21 | $0.21 |
| 8,800+ | $0.20 | $0.20 |
| 48,400+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14-16 AWG.
0.250" (6.35mm) width, 0.032" (0.81mm) thickness.
Crimp termination.
Yes, fully insulated with a blue housing.
Free hanging (in-line).
Brass contact with tin finish.
21.72mm (0.855").
