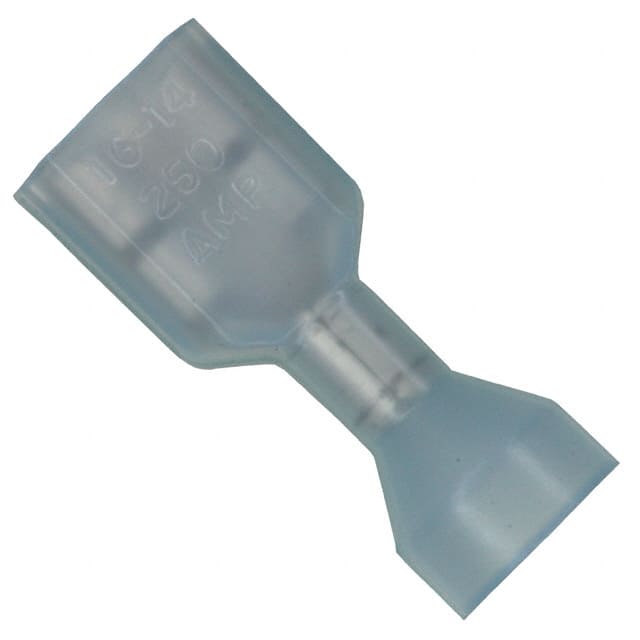

3-520140-2 Fully insulated female quick disconnect receptacle for 14-16 AWG wire with 0.250" tab width. Crimp termination with tin-plated brass contact.
Mfr Part #:

3-520140-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Fully insulated female quick disconnect receptacle for 14-16 AWG wire with 0.250" tab width. Crimp termination with tin-plated brass contact.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.14 - $0.19

3-520140-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-520140-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Material
Gender
Insulation
Length
Mounting Type
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Termination Style
Wire Gauge
View Similar Products (0)

3-520140-2 Description

Short technical summary and product information.

This fully insulated quick disconnect receptacle from TE Connectivity is designed for 14-16 AWG wire and a 0.250" male tab. The brass contact is tin-plated for corrosion resistance and reliable conductivity. Crimp termination ensures a secure mechanical and electrical connection. The blue insulation sleeve provides full coverage, preventing accidental shorts. With a free hanging (in-line) mounting style, it is suitable for various wire-to-wire or wire-to-tab applications. The overall length is 23.75 mm. This terminal is commonly used in automotive, appliance, and industrial wiring harnesses. It is available in tape and reel packaging (cut tape and tape and reel options).

3-520140-2 Quick Information

Product Type: Quick Connect Receptacle
Series: FASTON
Canonical Name: TE Connectivity 3-520140-2 Fully Insulated Quick Disconnect Receptacle
Subcategory: Female Quick Disconnect Terminal

3-520140-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-520140-2 Estimated Pricing

Qty Low High
2,000+ $0.19 $0.19
4,000+ $0.18 $0.18
6,000+ $0.17 $0.17
10,000+ $0.15 $0.15
50,000+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-520140-2 Features

  • Fully insulated for safety and protection.
  • Accepts 14-16 AWG wire range.
  • 0.250" tab width for standard connections.
  • Crimp termination for reliable assembly.
  • Tin-plated brass contact for conductivity.

3-520140-2 Applications

  • Ideal for wire-to-wire quick connections.
  • Used in automotive and appliance wiring.
  • Suitable for power distribution panels.
  • Common in industrial control systems.

3-520140-2 FAQs

6 frequently asked questions generated from this part’s specifications.
What mounting method does this terminal use?

Free hanging (in-line) mounting, no additional hardware required.

What wire gauge is compatible with this terminal?

14-16 AWG wire.

What is the tab width of this receptacle?

0.250" (6.35 mm).

Is this terminal insulated?

Yes, fully insulated with a blue insulation sleeve.

What is the contact material and finish?

Brass contact with tin plating.

What is the termination style?

Crimp termination.
