| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
176 pcs
|
176 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

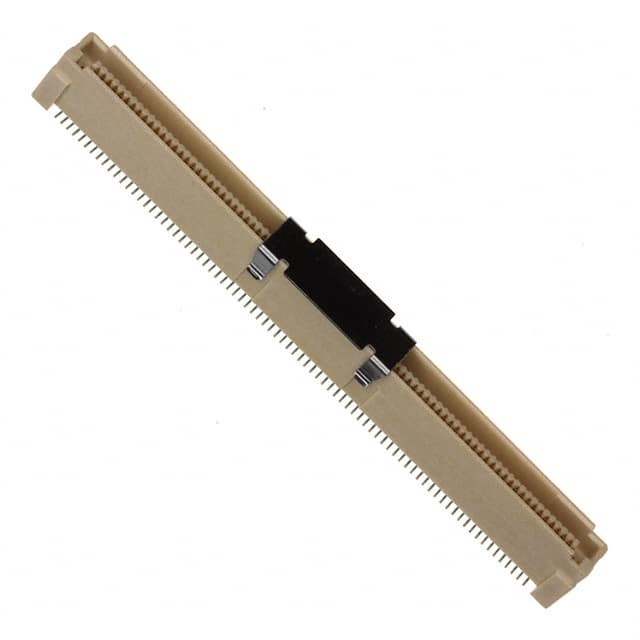

The TE Connectivity 3-5177986-8 is a 160-position plug connector featuring center strip contacts. It is designed for board-to-board and mezzanine stacking applications, supporting mated stacking heights of 8mm, 12mm, 16mm, and 20mm.
This connector has a 0.8mm pitch and two rows of contacts. The contacts are finished with gold plating (8.00µin / 0.203µm) for reliable signal integrity. It includes a board guide feature to assist with alignment during assembly.
The connector is surface mount (SMD) and has a height above board of 7.85mm. It is available in tape and reel packaging for automated pick-and-place assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.31 | $16.31 |
| 10+ | $13.86 | $13.86 |
| 25+ | $12.99 | $12.99 |
| 50+ | $12.37 | $12.37 |
| 100+ | $12.00 | $12.00 |
| 400+ | $10.69 | $10.69 |
| 800+ | $10.18 | $10.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 160 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
This connector is surface mount (SMD).
The contacts have a gold finish with a thickness of 8.00 microinches (0.203 micrometers).
It supports mated stacking heights of 8mm, 12mm, 16mm, and 20mm.
