| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

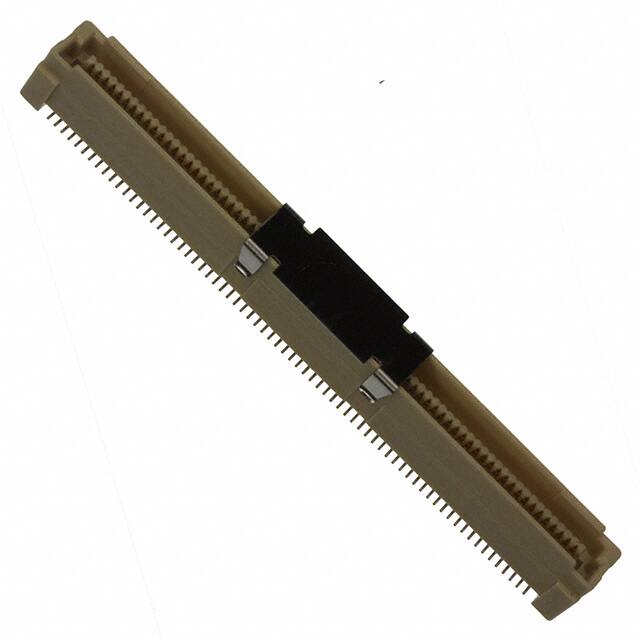

The TE Connectivity 3-5177986-6 is a 140-position plug connector with center strip contacts, designed for high-density mezzanine board-to-board applications. It features two rows of contacts at a 0.8mm pitch, enabling compact routing in dense PCBs. The connector is surface mount and has a height above board of 7.85mm, supporting mated stacking heights of 8mm, 12mm, 16mm, or 20mm for flexible design integration.
Contacts are gold plated with a thickness of 8µin (0.203µm), ensuring reliable signal integrity and corrosion resistance. The connector includes a board guide feature to assist alignment during assembly. This plug is suitable for use with matching receptacle connectors in applications requiring high contact counts in a small footprint.
Typical applications include telecommunications, networking, industrial control, and computing equipment where space is at a premium. The surface mount package is compatible with standard reflow soldering processes. RoHS compliance is unverified but the part is listed as RoHS3 compliant, with MSL 1 (unlimited floor life) and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.92 | $13.92 |
| 10+ | $11.84 | $11.84 |
| 25+ | $11.10 | $11.10 |
| 50+ | $10.57 | $10.57 |
| 100+ | $10.32 | $10.32 |
| 250+ | $9.30 | $9.30 |
| 400+ | $9.30 | $9.30 |
| 800+ | $9.15 | $9.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 140 positions.
The pitch is 0.80mm (0.031 inches).
Surface mount.
Gold with a thickness of 8µin (0.203µm).
8mm, 12mm, 16mm, and 20mm.
2 rows.
Yes, it includes a board guide.
