| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,400 pcs
|
12400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

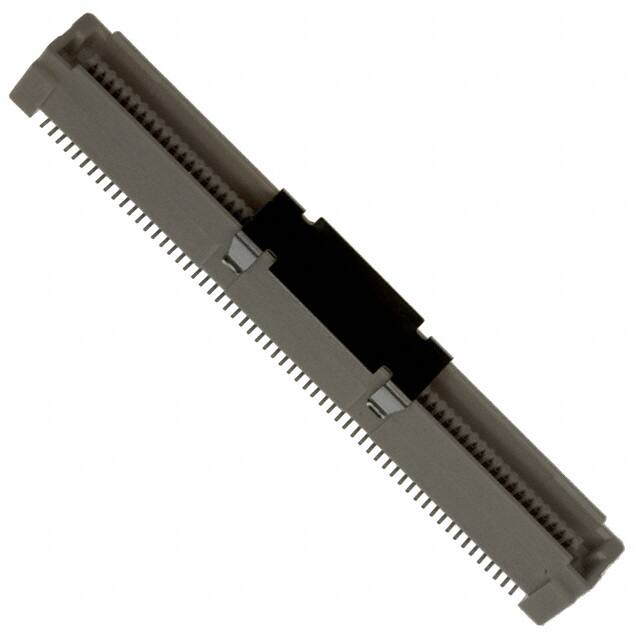

The TE Connectivity 3-5177986-5 is a 120-position plug connector featuring center strip contacts arranged in 2 rows with a 0.80mm pitch. Designed for surface mount assembly, this connector supports mated stacking heights of 8mm, 12mm, 16mm, and 20mm, making it suitable for mezzanine board-to-board interconnects. The contacts are finished with 8.00µin (0.203µm) gold for reliable signal integrity. A board guide feature aids in alignment during assembly. The connector height above board is 7.85mm. This component is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $12.95 | $12.95 |
| 10+ | $11.44 | $11.44 |
| 25+ | $10.93 | $10.93 |
| 50+ | $10.32 | $10.32 |
| 100+ | $9.86 | $9.86 |
| 250+ | $9.07 | $9.07 |
| 400+ | $8.33 | $8.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031 inches).
It has 120 positions arranged in 2 rows.
Surface mount (SMD).
Gold finish with 8.00µin (0.203µm) thickness.
8mm, 12mm, 16mm, and 20mm.
Yes, it includes a board guide.
