| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,302 pcs
|
29302 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Voltage Rating |

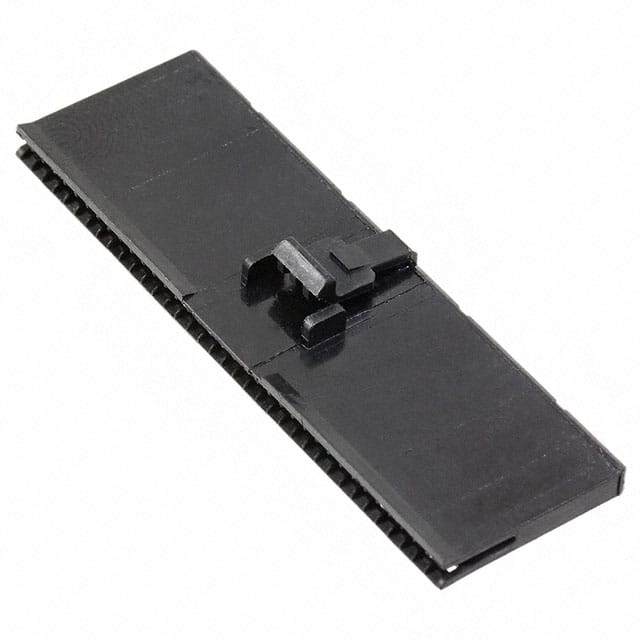

The 3-487545-3 from TE Connectivity is a 36-position, 1-row FFC receptacle housing designed for flat flexible cable connections. It features a pitch of 1.27mm (0.050") and accommodates FFC cables with a thickness of 0.05mm to 0.08mm.
The housing is constructed from polyester with a UL94 V-0 flammability rating, ensuring reliable performance in a wide range of environments. The locking mechanism is a latch lock type, providing secure cable retention. The connector is rated for 100V and operates over a temperature range of -55°C to 105°C.
This housing is intended for use with female contacts, making it suitable for applications where robust and reliable FFC connections are needed. It is a RoHS compliant and REACH unaffected component, suitable for use in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 12,000+ | $3.01 | $3.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions in a single row.
1.27mm (0.050").
FFC thickness of 0.05mm to 0.08mm.
-55°C to 105°C.
100V.
Latch lock.
Polyester housing with UL94 V-0 rating.
