| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,210 pcs
|
3210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,389 pcs
|
2389 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

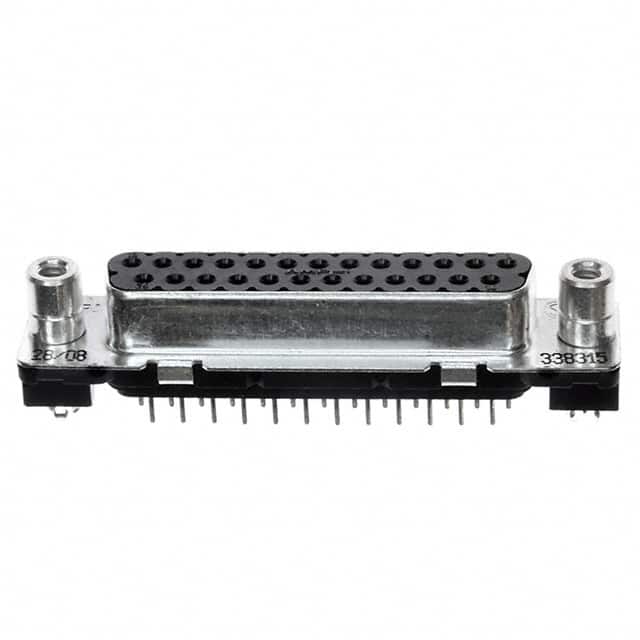

The TE Connectivity 3-338315-2 is a 25-position D-Sub receptacle designed for reliable signal connections in electronic assemblies. It features a steel, tin-plated shell with shell size 3 (DB, B) and includes a flange with female screwlock (4-40) on the mating side. The connector uses gold-plated contacts for signal applications, ensuring low resistance and corrosion resistance.
This connector is configured for vertical through-hole mounting with solder termination, making it suitable for PCB designs requiring a robust board-to-cable interface. It includes board lock features for secure attachment during soldering. The insulator material is rated UL94 V-0 for flammability, supporting use in a wide range of equipment.
The current rating is 6 A per contact, with a 2-row arrangement. The connector style is D-Sub, a industry-standard interface for data and signal transmission. The product's packaging supports through-hole assembly processes. Note that operating temperature range is not specified; consult manufacturer for detailed environmental limits.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.09 | $10.09 |
| 10+ | $10.05 | $10.05 |
| 30+ | $9.33 | $9.33 |
| 60+ | $8.98 | $8.98 |
| 120+ | $8.47 | $8.47 |
| 270+ | $7.71 | $7.71 |
| 480+ | $7.63 | $7.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
D-Sub.
25 positions arranged in 2 rows.
Solder termination.
6 A per contact.
Gold finish.
UL94 V-0.
