| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,960 pcs
|
1960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 21476 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

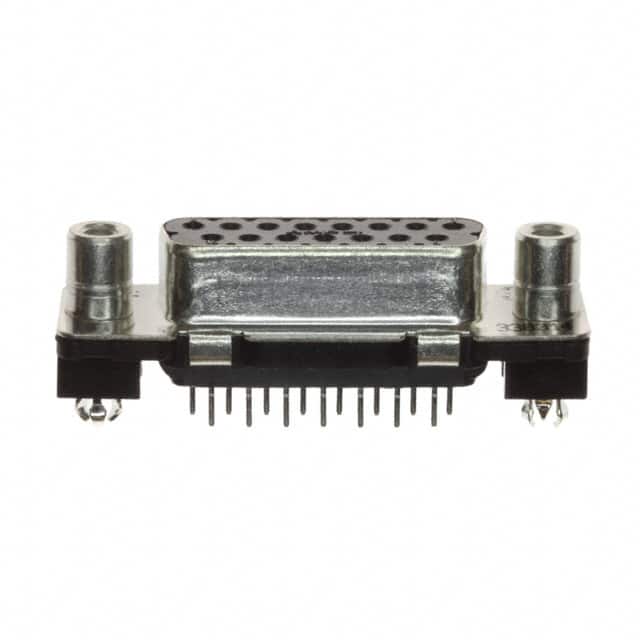

The TE Connectivity 3-338314-2 is a D-Sub receptacle connector featuring 15 female socket contacts arranged in 2 rows with a shell size of 2 (DA, A). It is designed for through hole mounting with solder termination, making it suitable for vertical board mounting applications.
The connector uses gold-plated signal contacts rated at 6A per contact. The steel shell is tin plated for durability and EMI shielding performance. A board lock feature aids in secure attachment to the PCB during assembly.
The insulator is made from a material rated UL94 V-0 for flammability resistance. The flange includes a mating side female screwlock with 4-40 threads for secure mating with a corresponding D-Sub plug.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.91 | $8.91 |
| 10+ | $8.00 | $8.00 |
| 25+ | $7.04 | $7.04 |
| 40+ | $6.88 | $6.88 |
| 120+ | $6.79 | $6.79 |
| 280+ | $6.36 | $6.36 |
| 520+ | $6.35 | $6.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Each signal contact is rated at 6A.
The connector has 15 positions arranged in 2 rows.
Through hole mounting with solder termination.
UL94 V-0.
Gold.
Steel, tin plated.
