| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,225 pcs
|
5225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

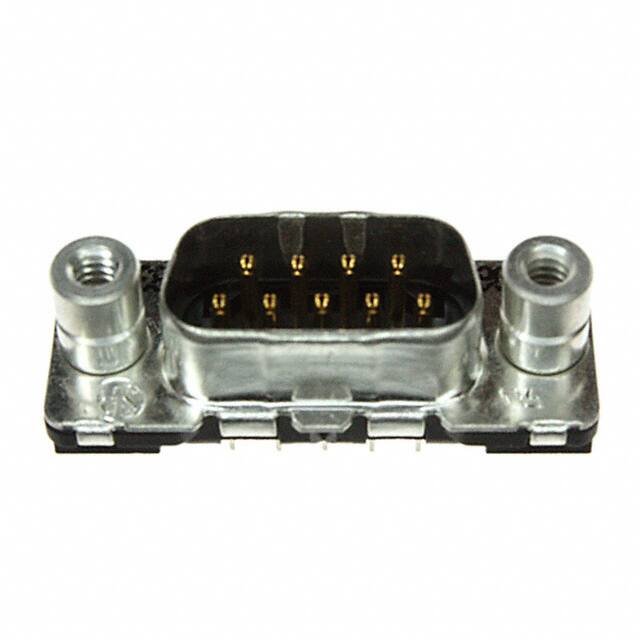

The TE Connectivity 3-338309-2 is a 9-position D-Sub plug connector designed for reliable signal interconnections. It features male pins arranged in 2 rows and utilizes through-hole mounting with solder termination for secure board attachment.
The connector offers a current rating of 6A and gold-plated contacts to ensure low resistance and corrosion resistance. The shell is made of steel with tin plating, and the insulator meets UL94 V-0 flammability rating.
Mechanical features include a mating side female screwlock (4-40) for secure mating, board locks for retention, and grounding indents for EMI protection. This connector is suitable for applications requiring a compact, robust D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.68 | $7.68 |
| 10+ | $7.05 | $7.05 |
| 25+ | $6.62 | $6.62 |
| 110+ | $6.57 | $6.57 |
| 275+ | $6.27 | $6.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This D-Sub plug has 9 positions arranged in 2 rows.
The current rating is 6A.
It is designed for through-hole mounting with solder termination.
The RoHS status is reported as RoHS3 compliant, but this information is unverified.
