| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
405 pcs
|
405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

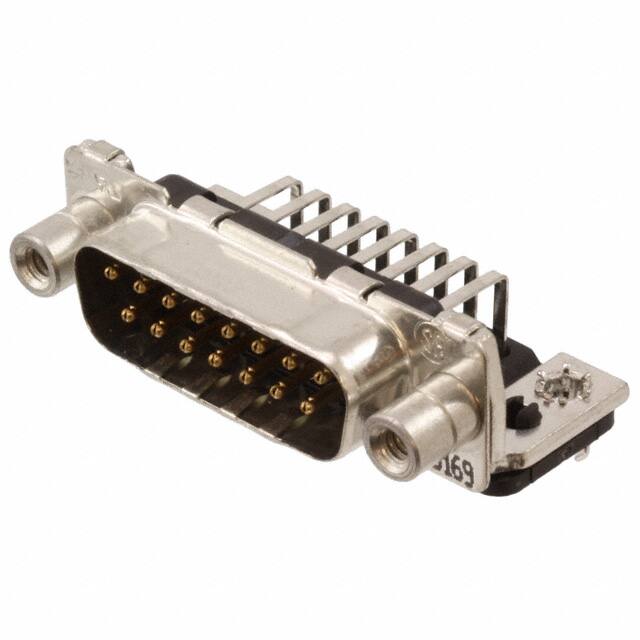

The TE Connectivity 3-338169-2 is a D-Sub connector assembly designed for reliable signal interconnections. This plug connector features 15 male pins arranged in 2 rows, with a shell size of 2 (DA, A). The connector is configured for through hole, right angle mounting and uses solder termination for secure PCB attachment.
Electrical specifications include a current rating of 6A per contact. The contacts are gold-plated for corrosion resistance and reliable signal integrity. The shell is constructed from steel with a tin-plated finish, providing durability and EMI shielding. The connector includes board locks and grounding indents for secure PCB retention and improved grounding.
The flange features a mating side female screwlock (4-40) for secure mating with a corresponding D-Sub receptacle. The insulator material carries a UL94 V-0 flammability rating. The backset spacing is 0.406 inches (10.30mm), suitable for standard PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.84 | $8.84 |
| 10+ | $7.75 | $7.75 |
| 25+ | $6.32 | $6.32 |
| 45+ | $6.11 | $6.11 |
| 90+ | $5.97 | $5.97 |
| 270+ | $5.55 | $5.55 |
| 540+ | $5.29 | $5.29 |
| 1,035+ | $5.28 | $5.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a D-Sub plug connector with male pins.
It has 15 positions arranged in 2 rows.
It is through hole, right angle mounting with solder termination.
The current rating is 6A.
The shell is steel with a tin-plated finish.
The material flammability rating is UL94 V-0.
