| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Diameter | |
| Lead Style | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Socket Depth | |
| Tail Type | |
| Termination | |
| Termination Style |

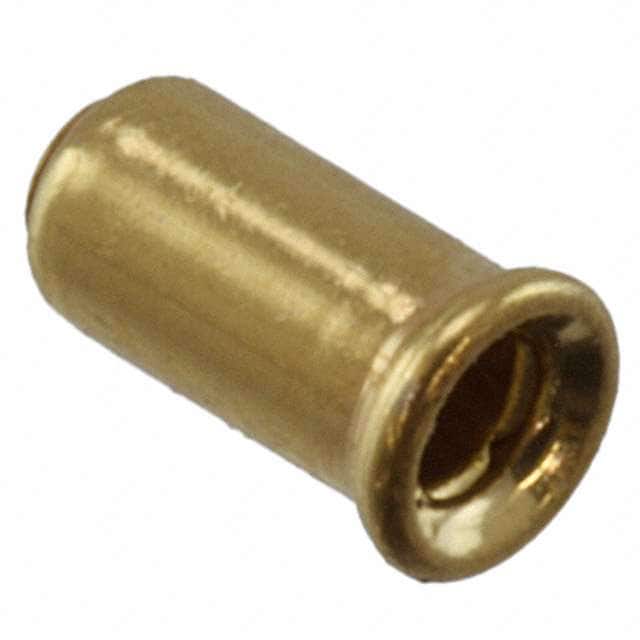

This PC pin receptacle from TE Connectivity is designed for solder termination into a printed circuit board. It accepts pin diameters ranging from 0.037" to 0.040" (0.94mm to 1.02mm). The contact is made of beryllium copper with a gold finish of 30.0µin (0.76µm) thickness, ensuring reliable electrical performance and corrosion resistance. The overall length is 3.63mm (0.143") with a socket depth of 3.30mm (0.130"). The flange diameter is 2.26mm (0.089") and the required mounting hole diameter is 1.83mm (0.072"). This no-tail version is suitable for through-hole mounting applications where a low-profile socket is needed.
Solder termination.
0.037" to 0.040" (0.94mm to 1.02mm).
Beryllium Copper.
Gold with thickness of 30.0µin (0.76µm).
3.63mm (0.143").
3.30mm (0.130").
Through hole (inferred from solder termination and no tail).
