| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
132 pcs
|
132 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Group | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Primary Material | |
| Rated Impulse Voltage | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

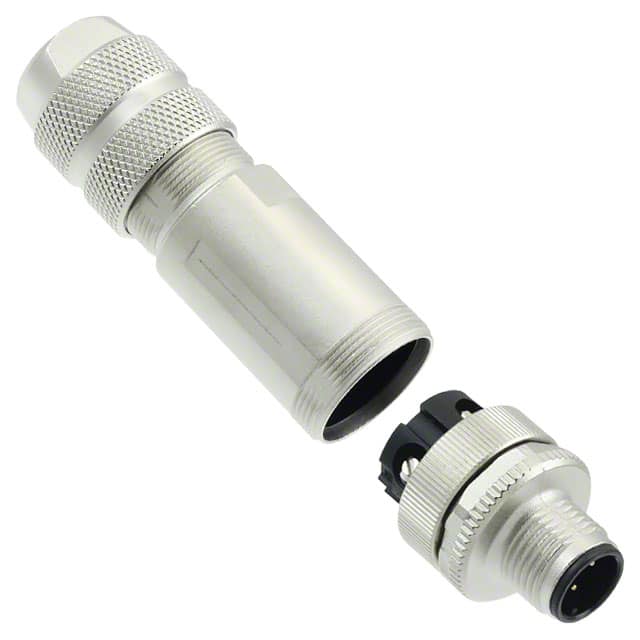

The TE Connectivity 3-2271115-2 is a M12 circular connector plug designed for industrial applications. It features a male pin configuration with 4 positions and D-coding for correct orientation. The connector is shielded to provide EMI protection.
Electrical specifications include a current rating of 4A, voltage rating of 250VAC/DC, and impulse voltage of 2500V. Contact resistance is less than 3 milliohms. The connector is rated for pollution degree 3 and overvoltage category II, with material group III.
The housing is made of zinc die cast with nickel plating, and contacts are gold-plated brass. The connector is free-hanging (in-line) with threaded fastening and screw termination, making it suitable for field installation. It operates from -40°C to 85°C and has an IP67 ingress protection rating. Packaging: 1 piece per bag.
4 positions.
4A.
250VAC/DC.
Free hanging (in-line).
IP67 - dust tight and waterproof.
-40°C to 85°C.
Screw termination.
