| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current - Max | |
| Data Rate (Max) | |
| Dielectric Withstanding Voltage | |
| Durability (min) | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Unmating Force | |
| Voltage - Max |

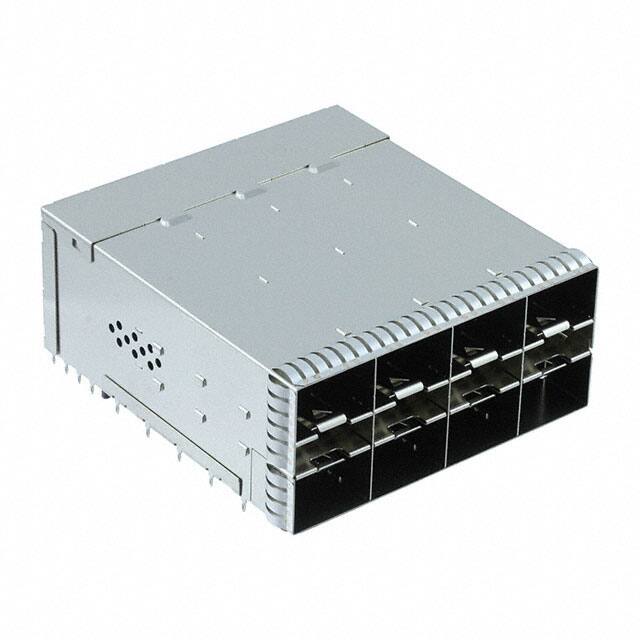

The TE Connectivity 3-2180324-1 is a zSFP+ pluggable I/O interconnect receptacle with an integrated cage in a ganged 2x4 port configuration. It features 160 positions arranged as 20 per port across 8 ports and uses a through hole right angle mounting with press-fit termination for secure PCB attachment.
This connector supports high-speed data transfer up to 28 Gbps NRZ and 56 Gbps PAM-4, making it suitable for 10 Gbps Ethernet and 16 Gbps Fibre Channel applications. It is backward-compatible with SFP/SFP+ connectors, enabling system upgrades without full redesign. The housing is made of high-temperature glass-filled thermoplastic rated UL 94V-0, and contacts are gold or gold-palladium plated over a high-performance copper alloy.
Electrical ratings include a maximum voltage of 120 V AC and a current of 0.5 A per contact. The connector is designed for 250 mating cycles minimum and operates over -40 to +85 °C. EMI shielding and a board guide are integrated for reliable performance in dense networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $87.10 | $87.10 |
| 12+ | $73.09 | $73.09 |
| 36+ | $67.65 | $67.65 |
| 60+ | $65.26 | $65.26 |
| 108+ | $62.61 | $62.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector supports up to 28 Gbps NRZ and 56 Gbps PAM-4.
Through hole, right angle with press-fit termination.
160 positions, arranged as 20 per port in a 2x4 ganged configuration.
-40 to +85 °C.
120 V AC maximum and 0.5 A per contact.
