| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector Mounting Type | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Mating Area Plating Material | |
| Contact Type | |
| EU ELV | |
| Features | |
| Halogen Free | |
| Mating Pin Diameter | |
| Mating Square Post Dimension | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Method to Wire & Cable | |
| Wire Contact Termination Area Plating Material | |
| Wire Contact Termination Area Plating Thickness | |
| Wire Type |

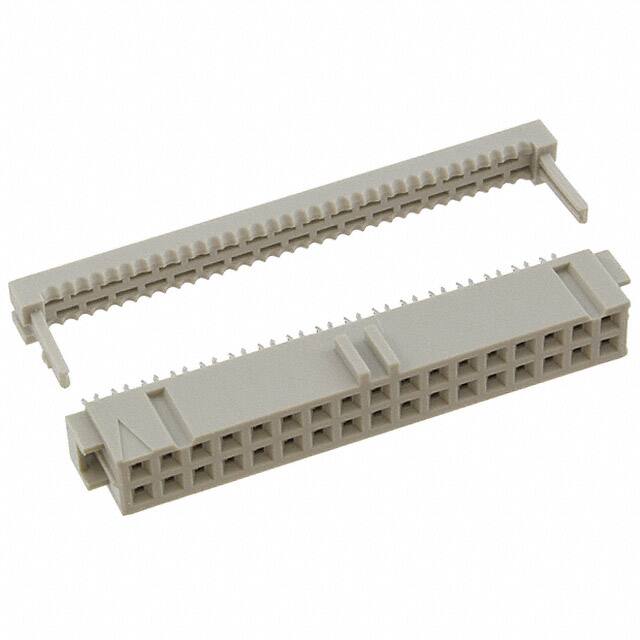

The TE Connectivity AMP-LATCH 3-215915-4 is a 34-position receptacle connector designed for wire-to-board ribbon cable applications. It features a 2.54mm pitch and 2 rows, with IDC (Insulation Displacement Connection) termination for quick and reliable cable assembly. The contacts are gold-plated in the mating area (0.80µm thickness) and tin-plated in the termination area, ensuring good signal integrity and solderability.
This connector is rated for 1A per contact and operates over a temperature range of -65 to 105°C, making it suitable for signal circuit applications. The free-hanging (in-line) right-angle mounting allows for flexible cable routing. A polarization key ensures correct mating alignment.
The housing is gray in color and features feed-through and polarizing key features. It is compliant with RoHS, REACH, and EU ELV directives.
34 positions.
2.54mm (0.100").
1 A per contact.
Free hanging (in-line), right angle.
Gold, 0.80µm thickness in mating area; tin in termination area.
-65 to 105 °C.
IDC (Insulation Displacement Connection).
