| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style |

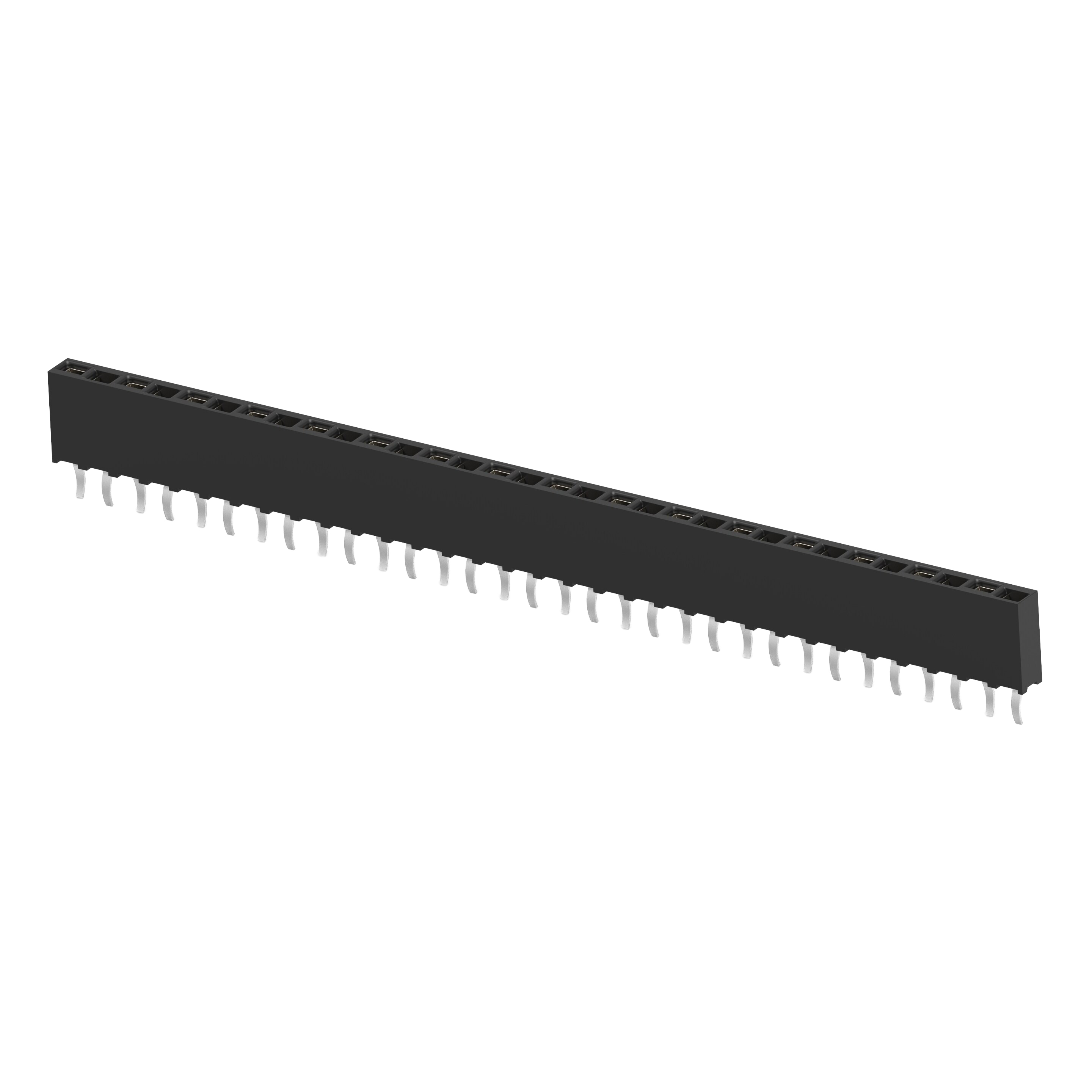

TE Connectivity 3-215297-2 is a rectangular connector receptacle designed for board-to-board applications. It provides 32 positions in a single row with a 2.54mm pitch, accommodating female socket contacts. The connector uses push-pull fastening and is rated UL94 V-0 for material flammability.
Termination is through-hole with a kinked pin solder design, and contacts are finished with tin (31.5µin / 0.80µm). The insulation is green with a height of 7.00mm, and the contact length is 3.10mm. All positions are loaded, offering a robust interconnection for PCB-to-PCB connections.
The through-hole mounting provides mechanical strength, while the UL94 V-0 rating ensures flame resistance. The 2.54mm pitch is common for standard PCB layouts, making this part suitable for many board-to-board interconnect applications.
| Qty | Low | High |
|---|---|---|
| 16+ | $5.20 | $5.20 |
| 80+ | $5.10 | $5.10 |
| 208+ | $5.00 | $5.00 |
| 352+ | $4.92 | $4.92 |
| 448+ | $5.51 | $5.51 |
| 464+ | $4.82 | $4.82 |
| 560+ | $4.35 | $4.35 |
| 1,104+ | $3.91 | $3.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 32 positions, all loaded, arranged in a single row.
The pitch is 2.54mm (0.100 inches).
Through hole with kinked pin solder termination.
Tin, with a thickness of 31.5µin (0.80µm).
It has one row.
Board to board.
The green insulator is rated UL94 V-0.
