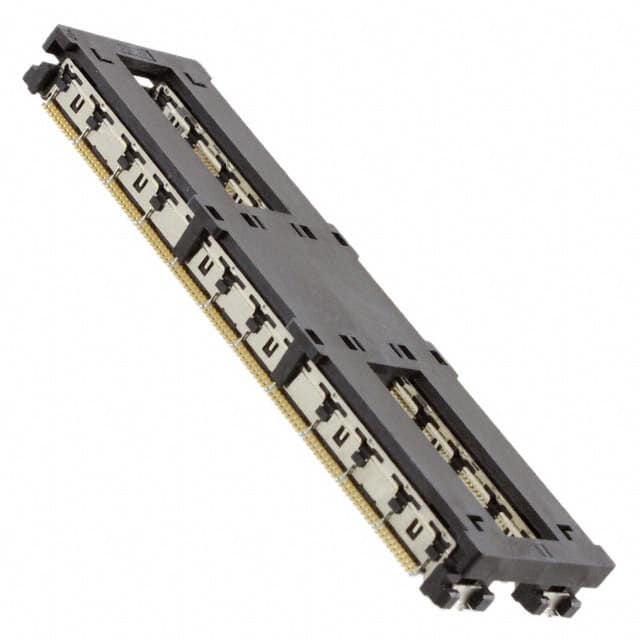

3-1827233-6 TE Connectivity 3-1827233-6 is a 440-position plug with outer shroud contacts, 0.50mm pitch, surface mount, and gold plating. It supports 16 GT/s data rates with 85 Ohm impedance.
Mfr Part #:

3-1827233-6

Available from 7 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 3-1827233-6 is a 440-position plug with outer shroud contacts, 0.50mm pitch, surface mount, and gold plating. It supports 16 GT/s data rates with 85 Ohm impedance.
✓ Total Stock: 5,583 pcs
$ Price Range: $50.03 - $69.60

3-1827233-6 Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-1827233-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Data Rate
Features
Height Above Board
Impedance
Industrial Grade
Lead Spacing
Lead Style
Mated Stacking Heights
Medical Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Tape & Reel
View Similar Products (0)

3-1827233-6 Description

Short technical summary and product information.

The TE Connectivity 3-1827233-6 is a high-speed vertical parallel board-to-board plug connector designed for Computer-on-Module (COM) and COM Express applications. It features 440 positions arranged in 2 rows on a 0.50mm pitch, enabling dense interconnections between COM modules and solution boards.



Electrical performance includes support for data rates up to 16 GT/s with 85 Ohm differential impedance, meeting PCI Express Gen 3 and other high-speed serial protocol requirements. The connector operates across a wide temperature range from -45°C to 125°C.



Mechanically, the plug uses outer shroud contacts with gold finish (0.203µm thickness) and includes board guide and ground plate features. It accommodates mated stacking heights of 5mm and 8mm, with a height above board of 4.45mm. Mounting type is surface mount, making it suitable for automated assembly processes.

3-1827233-6 Quick Information

Product Type: Board-to-Board Connector
Series: 16G
Canonical Name: TE Connectivity 3-1827233-6 Plug, 440 Position, 0.50mm Pitch, Surface Mount, Gold
Subcategory: Array Connector

3-1827233-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-1827233-6 Estimated Pricing

Qty Low High
1+ $69.60 $69.60
18+ $56.76 $56.76
36+ $54.05 $54.05
54+ $52.53 $52.53
108+ $50.03 $50.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

3-1827233-6 Features

  • 440 positions in 2 rows at 0.50mm pitch.
  • Supports 16 GT/s data rate with 85 Ohm impedance.
  • Surface mount with gold contact finish.
  • Compatible with 5mm and 8mm stacking heights.
  • Includes board guide and ground plate features.

3-1827233-6 Applications

  • Computer-on-Module (COM) vertical board-to-board connections.
  • COM Express Type 7 carrier board interfaces.
  • High-speed serial data links up to 16 GT/s.
  • Industrial embedded computing modules.

3-1827233-6 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3-1827233-6 connector have?

440 positions arranged in 2 rows.

What is the pitch of this connector?

0.50mm.

What mounting type is used?

Surface mount.

What is the maximum data rate supported?

16 GT/s.

What is the operating temperature range?

-45°C to 125°C.

What stacking heights are supported?

5mm and 8mm.

What is the impedance rating?

85 Ohm.
