| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

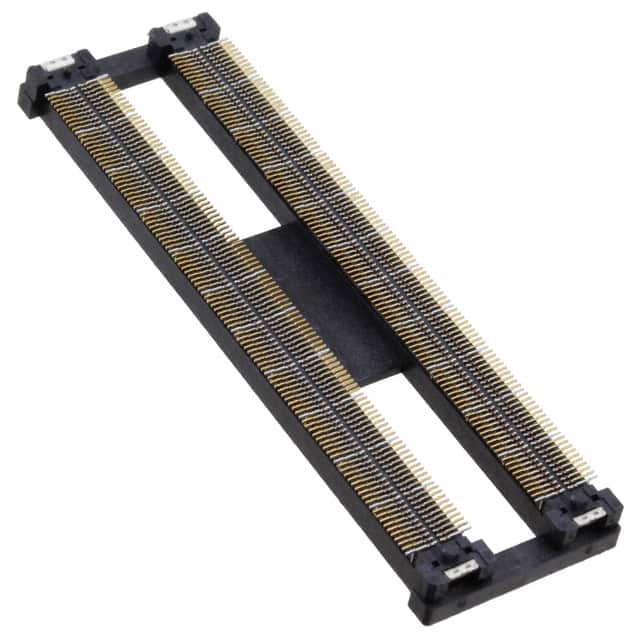

The TE Connectivity 3-1827231-6 is a high-density board-to-board mezzanine connector featuring 440 positions arranged in 2 rows with a 0.50mm pitch. This receptacle uses center strip contacts and is designed for surface mount soldering, making it suitable for compact electronic assemblies.
The connector includes a board guide and ground plate for reliable alignment and improved signal integrity. It supports mated stacking heights of 5mm and 8mm, offering flexibility in board spacing. The gold contact finish with 8.00µin thickness ensures durable, low-resistance connections.
With a height above board of 0.128 inches (3.25mm), this connector is optimized for space-constrained applications requiring high pin counts. The surface mount package facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $39.94 | $39.94 |
| 10+ | $34.47 | $34.47 |
| 18+ | $33.32 | $33.32 |
| 54+ | $31.23 | $31.23 |
| 108+ | $30.18 | $30.18 |
| 252+ | $29.45 | $29.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020 inches).
It has 440 positions arranged in 2 rows.
It is a surface mount (SMT) connector.
The contact finish is gold with a thickness of 8.00 microinches (0.203 micrometers).
The connector supports mated stacking heights of 5mm and 8mm.
Yes, it includes a board guide and a ground plate.
