| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

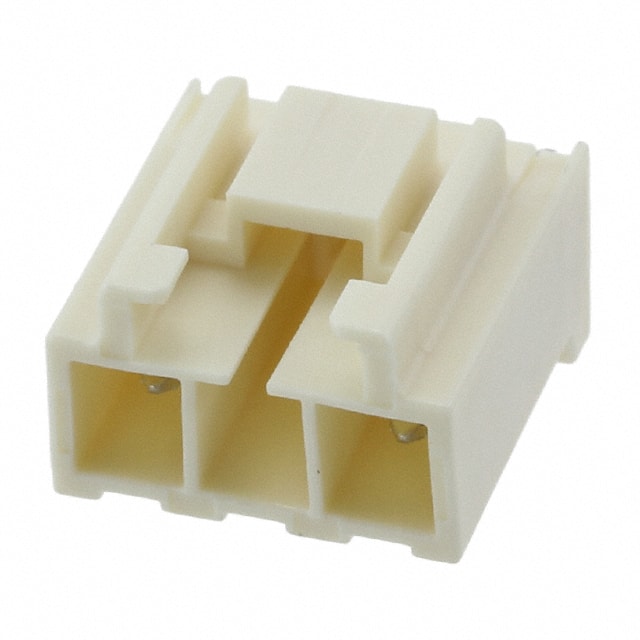

The TE Connectivity 3-176976-1 is a 3-position (2 loaded) single-row shrouded header with a 3.96mm pitch, part of the industry-standard 0.156" centerline family. It is designed for board-to-cable/wire connections and features a 4-wall shrouded housing with a locking ramp for secure mating.
The header uses through-hole mounting with kinked pin solder termination for reliable mechanical retention. Contacts are made of brass with a tin finish, and the insulator is natural-colored glass-filled nylon 6/6 (PA66) with a UL94 V-0 flammability rating. The operating temperature range is -30°C to 105°C.
This connector is suitable for power and signal applications where a robust, polarized interface is required. The 3.96mm pitch provides a balance between density and current capacity, though the current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 6,400+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156").
It has 3 positions, with 2 positions loaded.
Through hole with kinked pin solder termination.
-30°C to 105°C.
Glass-filled polyamide (PA66) nylon 6/6 with UL94 V-0 rating.
Tin finish on brass contact material.
