| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

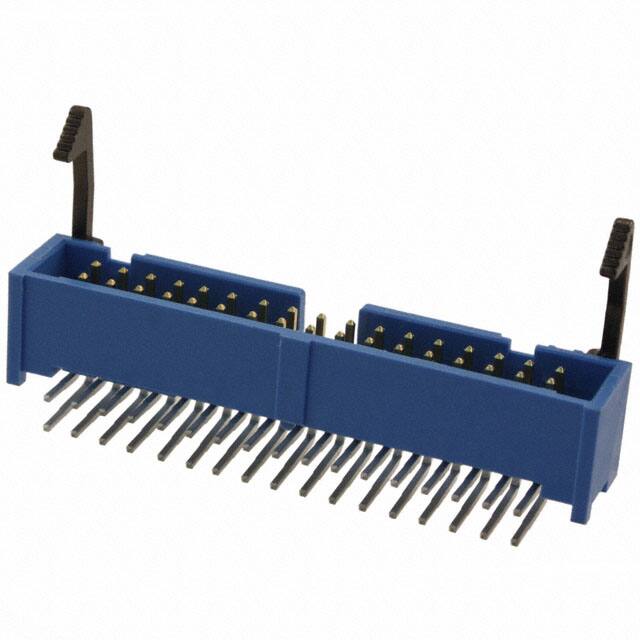

The TE Connectivity 3-1761607-1 is a 34-position, 2-row header with male pins arranged at a 2.54mm pitch. It features a right-angle through-hole mounting style with solder termination, designed for board-to-cable/wire applications. The connector is shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating and easy disconnection. Contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and are square-shaped, with a contact length of 6.02mm. The insulator is blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Electrical ratings include 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. A keying slot feature ensures proper alignment during mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.68 | $8.68 |
| 10+ | $6.83 | $6.83 |
| 20+ | $6.74 | $6.74 |
| 200+ | $6.65 | $6.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions, all loaded.
2.54mm (0.100")
1A per contact
250VAC
Through Hole, Right Angle
Tin with 30.0µin (0.76µm) thickness
-65°C to 105°C
