| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,278 pcs
|
1278 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

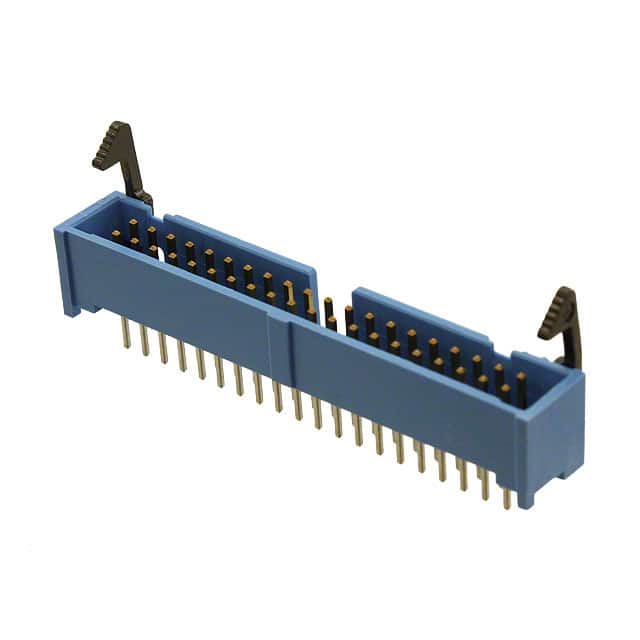

The TE Connectivity 3-1761606-3 is a 40-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with all positions loaded. The connector uses square male pin contacts made of phosphor bronze with a tin finish (30.0µin thickness).
The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. A keying slot is provided for polarization. The insulation is made of blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
Electrical ratings include 1A per contact current and 250VAC voltage. The operating temperature range is -65°C to 105°C. Mounting is through hole with solder termination. Contact length is 6.02mm (0.237").
| Qty | Low | High |
|---|---|---|
| 1+ | $9.83 | $9.83 |
| 9+ | $8.74 | $8.74 |
| 27+ | $8.58 | $8.58 |
| 54+ | $8.45 | $8.45 |
| 108+ | $7.92 | $7.92 |
| 252+ | $7.88 | $7.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 1A per contact.
The voltage rating is 250VAC.
It uses through hole mounting with solder termination.
The operating temperature range is -65°C to 105°C.
The contacts are phosphor bronze with a tin finish of 30.0µin (0.76µm).
