| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

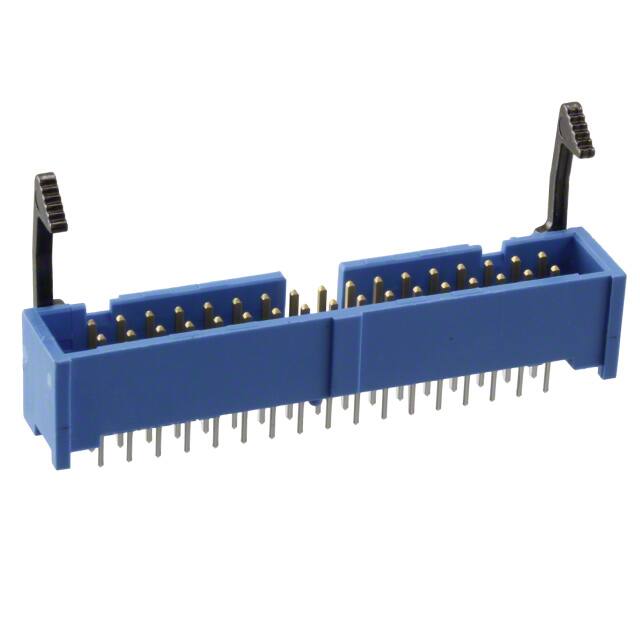

The TE Connectivity 3-1761606-1 is a 34-position, 2-row, 2.54mm pitch rectangular header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a blue PBT insulation housing rated UL94 V-0. The male square pins are made of phosphor bronze with a tin finish (30µin thickness).
This through-hole header is mounted vertically and terminated via solder. It includes a latch lock/eject hook fastening system for secure mating and a keying slot for alignment. The connector is rated for 1A per contact at 250VAC and operates over a temperature range of -65°C to 105°C.
With its 2.54mm pitch and 2.54mm row spacing, this connector is suitable for standard wire-to-board interconnect applications. The long eject hooks facilitate easy disconnection. The blue insulation color provides visual identification.
All 34 positions are loaded, and the contact length is 6.02mm. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $12.79 | $12.79 |
| 10+ | $10.85 | $10.85 |
| 20+ | $10.40 | $10.40 |
| 50+ | $10.21 | $10.21 |
| 100+ | $9.10 | $9.10 |
| 200+ | $8.76 | $8.76 |
| 500+ | $8.24 | $8.24 |
| 1,000+ | $7.85 | $7.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions, all loaded.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole.
Latch lock/eject hooks, long.
-65°C to 105°C.
