| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

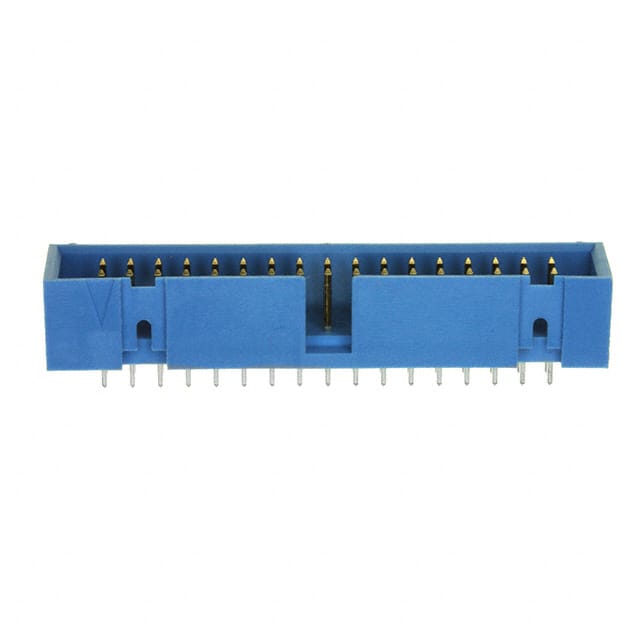

The TE Connectivity 3-1761603-1 is a 34-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with a through-hole mounting style and solder termination. The header is fully shrouded with a 4-wall design, providing robust protection for the male pins. The square pins are made of phosphor bronze with a tin finish (30.0µin thickness), ensuring reliable electrical contact and corrosion resistance. The insulator is molded from blue polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The connector is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. A keying slot feature aids in proper alignment during mating. This header is suitable for use in a variety of industrial and commercial electronic assemblies requiring a secure, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.34 | $6.34 |
| 10+ | $6.30 | $6.30 |
| 25+ | $6.26 | $6.26 |
| 50+ | $5.79 | $5.79 |
| 100+ | $5.25 | $5.25 |
| 1,000+ | $5.12 | $5.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 34 positions in 2 rows, all loaded.
The current rating is 1A per contact.
The voltage rating is 250VAC.
Through hole with solder termination.
-65°C to 105°C.
Yes, it is fully shrouded with a 4-wall design.
