| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,678 pcs
|
6678 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Pitch | |
| Tape & Reel | |
| UL Flammability Rating |

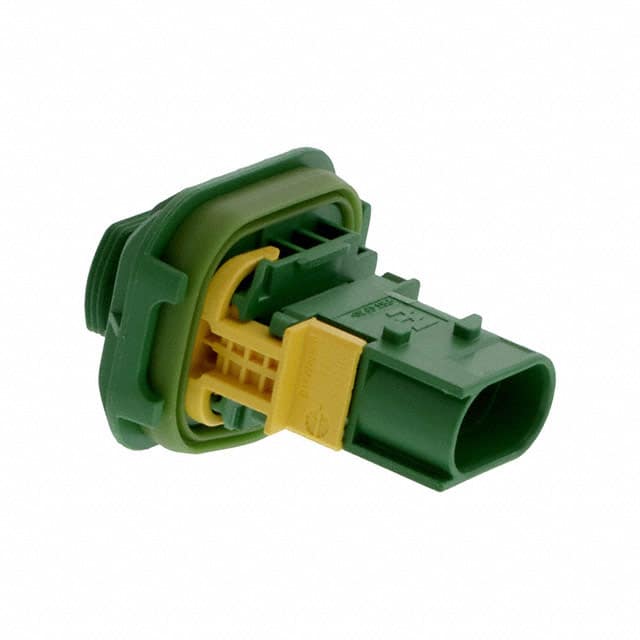

The TE Connectivity 3-1703843-1 is a rectangular connector housing designed for male terminals in wire-to-wire applications. It belongs to the Heavy Duty Sealed Connector Series and features 3 positions in a single row with a 4.00 mm pitch. The housing is green in color and made of PBT GF material with a UL 94V-0 flammability rating.
This housing is panel mountable with a slide-on fastening mechanism and includes a mounting flange for secure attachment. It is sealable and rated IP67 for protection against dust and water immersion. The operating temperature range is -40°C to 140°C, making it suitable for harsh environments.
Electrical ratings include 60 VDC operating voltage and 20 A maximum current per contact. The housing accepts tab contacts with 1.6 mm mating tab width and uses crimp termination. Cable exit angles of 180° and 90° are supported. The connector features keyed mating alignment and terminal position assurance (TPA). Strain relief is added by accessory.
Packaging is in cartons of 450 pieces. This housing is designed for signal circuit applications and is compatible with 12 V, 24 V, 42 V, and 60 V nominal voltage architectures.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.88 | $2.88 |
| 10+ | $2.49 | $2.49 |
| 25+ | $2.22 | $2.22 |
| 100+ | $2.12 | $2.12 |
| 250+ | $1.90 | $1.90 |
| 450+ | $1.72 | $1.72 |
| 900+ | $1.63 | $1.63 |
| 2,700+ | $1.53 | $1.53 |
| 5,400+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
4.00 mm.
20 A.
60 VDC.
Panel mount.
IP67.
-40°C to 140°C.
