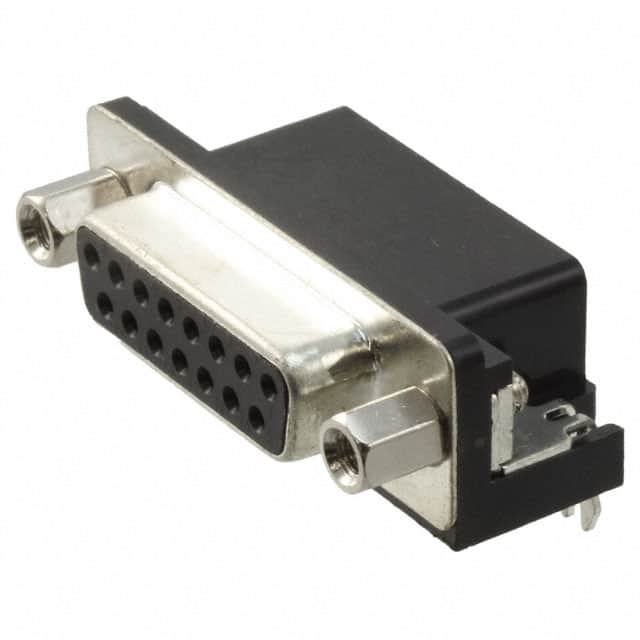

3-1634585-2 This is a D-Sub receptacle with 15 positions, 2 rows, right angle through hole mounting, and solder termination. It features gold plated contacts and a steel nickel plated shell.
Mfr Part #:

3-1634585-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a D-Sub receptacle with 15 positions, 2 rows, right angle through hole mounting, and solder termination. It features gold plated contacts and a steel nickel plated shell.
✓ Total Stock: 4 pcs

3-1634585-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-1634585-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Features
Flange Feature
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

3-1634585-2 Description

Short technical summary and product information.

The TE Connectivity 3-1634585-2 is a 15-position D-Sub receptacle (female sockets) designed for signal applications. It features a right angle through hole mounting style with solder termination, making it suitable for compact PCB layouts where a low-profile connection is needed.



The connector has a shell size 2 (DA, A) layout with 2 rows. Contacts are gold plated with 15µin thickness for reliable signal integrity. The steel shell with nickel plating provides durability and EMI shielding. A board lock feature aids in mechanical retention during soldering, and the mating side includes a female screwlock (4-40) for secure mating.



Electrical rating: 5A per contact. The insulator material is rated UL94 V-0 for flammability. Backset spacing is 0.411 inches. Applications include industrial control systems, data communication equipment, and test instrumentation where standard D-Sub signal connections are required.

3-1634585-2 Quick Information

Product Type: D-Sub Connector Assembly
Canonical Name: TE Connectivity 3-1634585-2 D-Sub Receptacle, 15 Position, Through Hole Right Angle, Solder
Subcategory: Receptacle

3-1634585-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

3-1634585-2 Features

  • 15-position D-Sub receptacle with 2 rows.
  • Right angle through hole solder mounting.
  • Gold plated contacts for reliable connection.
  • Steel shell with nickel plating.
  • Board lock for secure PCB retention.

3-1634585-2 Applications

  • Industrial control and automation systems.
  • Data communication and networking equipment.
  • Test and measurement instruments.
  • Signal I/O for electronic devices.

3-1634585-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

15 positions arranged in 2 rows.

What is the current rating?

5A per contact.

What is the mounting style?

Through hole, right angle.

What is the contact finish?

Gold with 15µin thickness.

What is the shell material and finish?

Steel, nickel plated.

What is the flammability rating of the insulator?

UL94 V-0.

Does it have board locks?

Yes, includes a board lock feature.
