| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

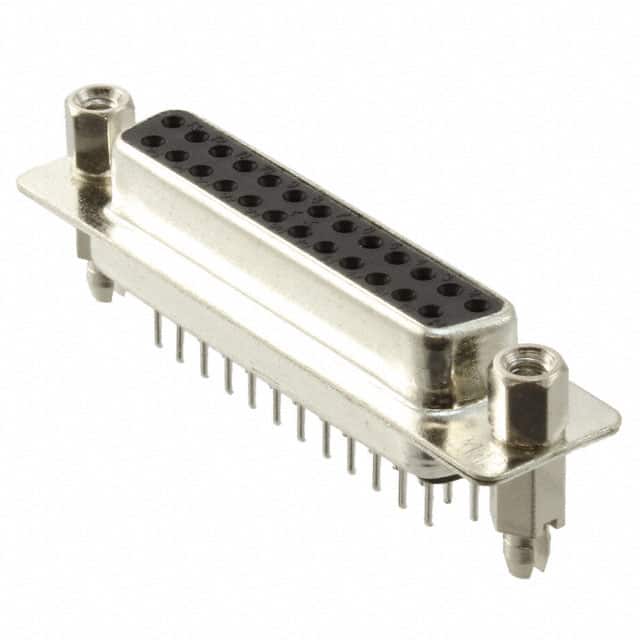

The TE Connectivity 3-1634224-2 is a D-Sub receptacle connector with 25 female socket contacts arranged in 2 rows. It features a DB-B shell size and is designed for through hole mounting with solder termination. The contacts are gold plated with a thickness of 15 microinches (0.38 micrometers), ensuring low contact resistance and corrosion resistance. The connector is rated for a current of 3A per contact.
The shell is made of steel with a nickel plating, providing durability and EMI shielding. A mating side female screwlock (4-40) flange feature is included for secure mating. The insulator material has a UL94 V-0 flammability rating, suitable for applications requiring flame retardance. Additionally, the connector includes a board lock feature for secure attachment to the PCB during soldering.
This connector is commonly used in data communication, industrial control, and computer peripheral applications where reliable multi-pin connections are required. The through hole design provides robust mechanical attachment to the PCB.
25 positions.
3A per contact.
Through hole.
Gold, 15 microinches (0.38 micrometers) thickness.
Steel, nickel plated.
UL94 V-0.
Yes, it includes a board lock feature.
