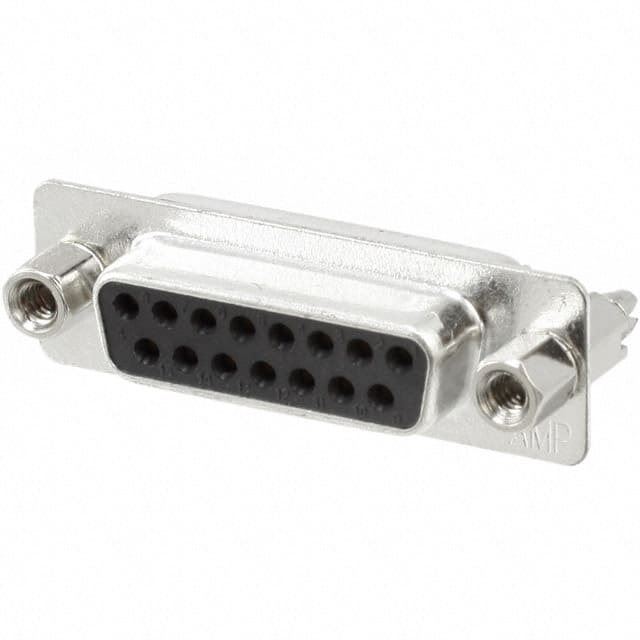

3-1634223-2 D-Sub receptacle with 15 female sockets, through hole vertical mounting, gold plated contacts. Features board locks and 4-40 screwlocks for secure mating.
Mfr Part #:

3-1634223-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub receptacle with 15 female sockets, through hole vertical mounting, gold plated contacts. Features board locks and 4-40 screwlocks for secure mating.
✓ Total Stock: 8 pcs

3-1634223-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3-1634223-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Base Material
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Features
Flange Feature
Housing Color
Housing Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
PCB Mount Retention
SVHC Present
Shell Material
Shell Material, Finish
Shell Size, Connector Layout
Shell Type
Termination
Termination Post Length
UL Flammability Rating
View Similar Products (0)

3-1634223-2 Description

Short technical summary and product information.

The TE Connectivity 3-1634223-2 is a 15-position D-Sub receptacle with female sockets, designed for through hole vertical mounting on a printed circuit board. The connector features a full metal shell made of steel with nickel plating, providing robust EMI shielding. Contacts are made of phosphor bronze with a gold plating thickness of 15 microinches on the mating area, ensuring reliable signal transmission and corrosion resistance. The housing is black thermoplastic with a UL94 V-0 flammability rating. This connector includes board locks for secure PCB retention and female screwlocks (4-40 UNC) on the mating side for a stable connection with the mating plug. The centerline spacing is 2.77 mm, and the termination post length is 5.2 mm. The current rating is 3A per contact. The component is packaged in trays with a standard quantity of 70 pieces. It is suitable for applications requiring a compact, reliable D-Sub interface in industrial, data communication, and test equipment.

3-1634223-2 Quick Information

Product Type: D-Sub Connector Assembly
Series: Solder Cup Connectors
Canonical Name: D-Sub Receptacle, 15 Position, Female Sockets, Through Hole, Vertical
Subcategory: D-Sub Connector Assemblies

3-1634223-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3-1634223-2 Features

  • 15 position D-Sub receptacle with female sockets.
  • Through hole vertical PCB mounting.
  • Gold plated phosphor bronze contacts.
  • Board locks for secure PCB retention.
  • UL94 V-0 rated thermoplastic housing.

3-1634223-2 Applications

  • Used in industrial control and automation systems.
  • Suitable for data communication interfaces.
  • Ideal for rack-mounted equipment connections.
  • Common in test and measurement devices.

3-1634223-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3-1634223-2 have?

15 positions.

What is the contact pitch (centerline) of this connector?

2.77 mm.

What is the current rating of the 3-1634223-2?

3A.

What is the mounting type for this D-Sub connector?

Through hole, vertical orientation.

What is the contact finish?

Gold, 15µin thickness.

Does this connector have board locks?

Yes, it includes board locks for PCB retention.

What is the shell material and finish?

Steel with nickel plating.
