| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

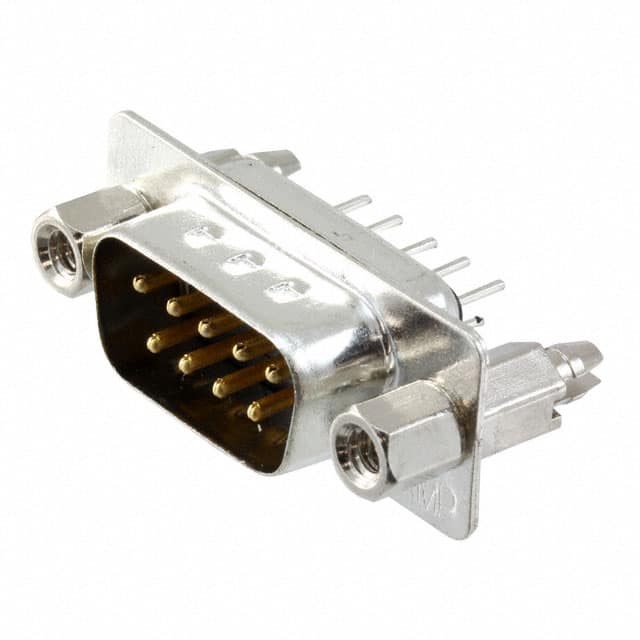

This D-Sub plug connector from TE Connectivity features 9 positions arranged in 2 rows. It utilizes a through hole mounting style with solder termination for secure attachment to printed circuit boards. The contacts are signal type with a gold finish of 15µin thickness, ensuring reliable electrical connections.
The connector has a steel shell with nickel plating, providing durability and EMI shielding. The shell size is DE-9 (1), and it includes a flange feature with mating side female screwlock (4-40) for secure mating. Additional features include board lock and grounding indents for enhanced mechanical stability.
The current rating is 3A, suitable for signal-level applications. The insulator material has a flammability rating of UL94 V-0. The connector is RoHS3 compliant, MSL 1, and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 5,400+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
3A.
Through hole.
Solder.
Gold, 15µin thickness.
Steel, nickel plated.
UL94 V-0.
