| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
288 pcs
|
288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Type |

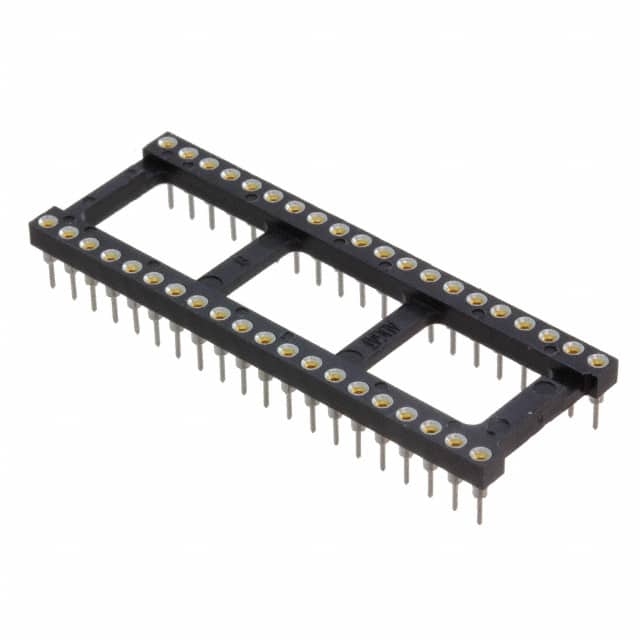

The TE Connectivity 3-1571586-2 is a 40-position DIP IC socket designed for through-hole mounting. It features a 0.6" (15.24mm) row spacing and a 2.54mm (0.100") pitch, making it suitable for standard DIP-40 packages. The open-frame construction allows for improved heat dissipation and easier inspection of solder joints.
The contacts are made of beryllium copper with a 25.0µin (0.63µm) gold finish, ensuring reliable electrical connections and corrosion resistance. The housing is constructed from polycyclohexylenedimethylene terephthalate (PCT) and polyester, providing good mechanical strength and thermal stability.
This socket operates over a temperature range of -55°C to 105°C, making it suitable for a wide variety of environments. The solder termination type ensures a secure connection to the PCB. With its robust design, this socket is appropriate for both prototyping and production applications where a reliable DIP socket is required.
| Qty | Low | High |
|---|---|---|
| 300+ | $4.96 | $4.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions (2x20).
2.54mm (0.100").
Through hole.
Gold with 25.0µin thickness.
-55°C to 105°C.
Beryllium copper.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester.
