| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,010 pcs
|
5010 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

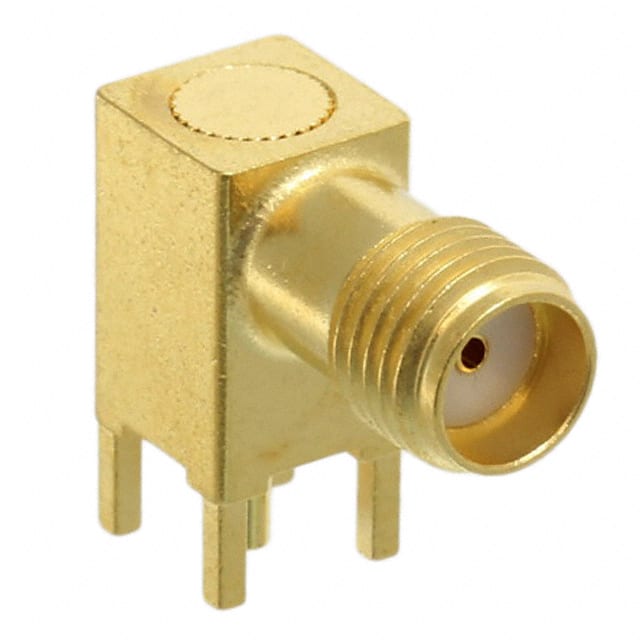

The TE Connectivity 3-1478978-1 is an SMA coaxial connector receptacle with a female socket interface. It is designed for 50 Ohm impedance systems and supports frequencies up to 6 GHz. This connector is a single-port, right-angle through-hole PCB mount variant with solder termination for both contact and shield.
Mechanical features include a threaded fastening type for secure coupling, a gold-plated housing, and a phosphor bronze center contact. The connector is rated for RoHS compliance, REACH unaffected, and has an MSL rating of 1 (unlimited).
This SMA receptacle is suitable for RF applications requiring reliable signal transmission in wireless communication, test equipment, and antenna systems. Its compact right-angle design allows for space-efficient PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.37 | $3.37 |
| 10+ | $3.05 | $3.05 |
| 30+ | $2.85 | $2.85 |
| 120+ | $2.67 | $2.67 |
| 270+ | $2.39 | $2.39 |
| 510+ | $2.34 | $2.34 |
| 1,020+ | $2.17 | $2.17 |
| 2,520+ | $2.03 | $2.03 |
| 5,010+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
6 GHz.
SMA.
Through hole, right angle.
Threaded.
Gold.
Phosphor bronze.
