| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,358 pcs
|
6358 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| SVHC Present | |
| Specifications | |
| Tape & Reel |

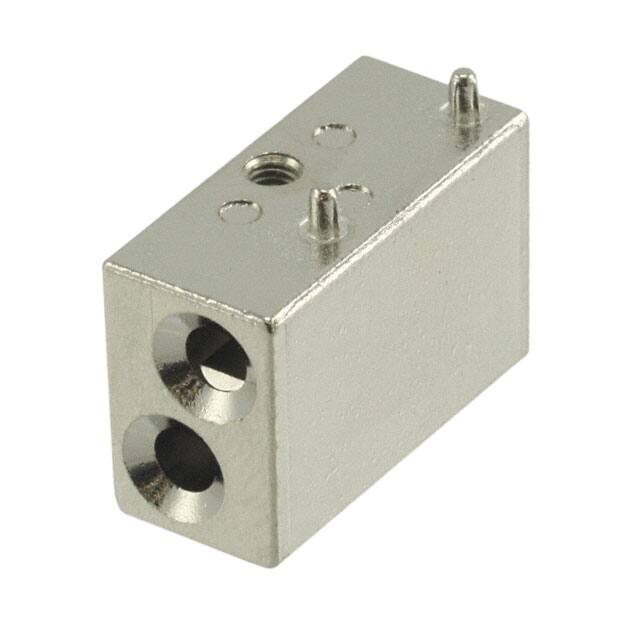

The TE Connectivity 3-1469373-7 is a guide module accessory designed for the AdvancedTCA series backplane connectors. It is classified as Type K1/K2 and features a right-angle female orientation.
This guide module is used to ensure proper alignment and mating of connector modules in AdvancedTCA systems, providing mechanical guidance during insertion and extraction. The part is compliant with RoHS3, REACH Unaffected, and has an MSL of 1 (unlimited).
The guide module is a passive mechanical component and does not have electrical ratings. It is intended for use in backplane connector assemblies within telecommunications, data communications, and industrial computing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.53 | $5.53 |
| 10+ | $4.30 | $4.30 |
| 25+ | $4.17 | $4.17 |
| 50+ | $4.05 | $4.05 |
| 100+ | $3.71 | $3.71 |
| 250+ | $3.41 | $3.41 |
| 500+ | $3.33 | $3.33 |
| 1,000+ | $3.27 | $3.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is used with AdvancedTCA Series backplane connectors to provide mechanical alignment and guidance during module insertion and extraction.
It is designated as Type K1/K2.
Yes, it is listed as RoHS3 Compliant.
The MSL is 1 (unlimited).
