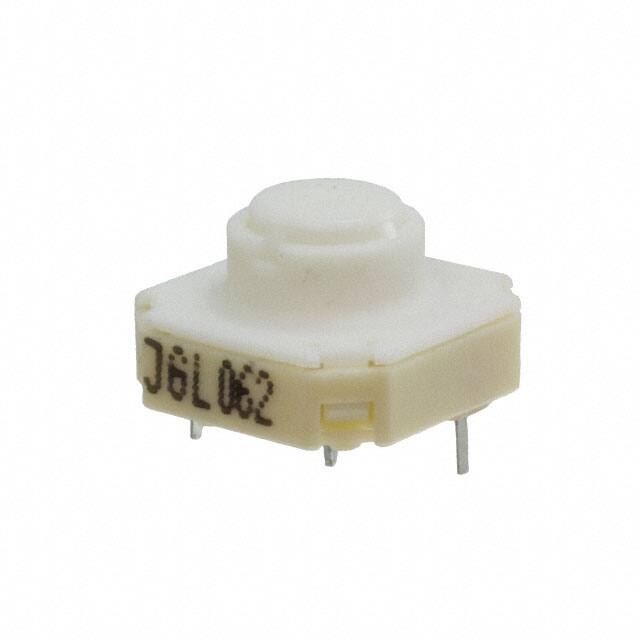

This RAFI tactile switch, part number 3.14.100.501/0000, is a non-illuminated, top-actuated component designed for through-hole mounting on PCBs. It features a snap-action contact system with a 1 NO contact arrangement and gold contacts.
The switch has a rated voltage of up to 35V and a rated current of 0.1A at 35V. The operating force is a maximum of 2.9 N, with a switching travel of 0.5 mm. It is built for durability with a minimum operating life of 1,000,000 cycles.
Mechanical dimensions are 15 mm x 15 mm with an overall height of 9.7 mm. The operating temperature range is from -25°C to +70°C. The switch is RoHS3 compliant and has an MSL rating of 1.
This component is suitable for various applications requiring a reliable tactile switching solution. Its robust construction and specified electrical characteristics make it a dependable choice for electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 2.9 N.
The switching travel is 0.5 mm.
The maximum rated voltage is 35 V.
The contact resistance is less than 100 mΩ.
The operating temperature range is from -25°C to 70°C.
Yes, it is RoHS3 compliant.
