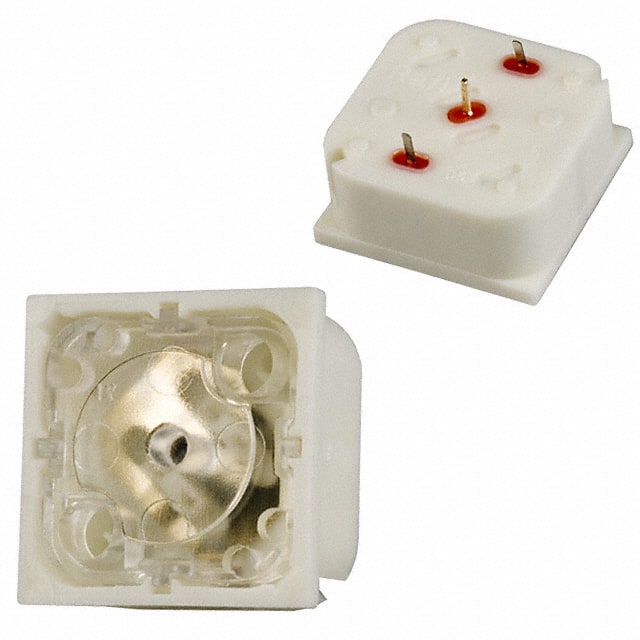

This RAFI RF 19 tactile switch, part number 3.14.001.006/0000, is designed for applications requiring a reliable single-pole, single-throw normally open (SPST-NO) contact configuration. It operates with a rating of 0.25A at 50VAC/DC and features silver contacts for good conductivity.
The switch is non-illuminated and has a square button actuator with a vertical height of 9.70mm off the PCB. Its dimensions are 19.05mm x 19.05mm, and it is designed for a recommended key grid of 23mm.
Mechanical characteristics include an operating force between 2.3N and 2.9N and a switching travel of 0.3mm to 0.5mm. The switch is built for durability with a minimum operating life of 1,000,000 cycles. It is designed for Through Hole mounting with PC Pin termination.
Environmental specifications include an operating temperature range of -25°C to +70°C and resistance to various environmental conditions per IEC standards. Solderability is supported via wave soldering up to 260°C or manual soldering up to 350°C for 5 seconds.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RAFI 3.14.001.006/0000 tactile switch features a 1 NO (Normally Open) contact arrangement, also known as SPST-NO.
This switch is rated for a maximum voltage of 35V and a maximum current of 250mA, with a maximum power rating of 12.5W for ohmic loads.
The operating temperature range for this switch is from -25°C to +70°C.
This tactile switch is designed for Through Hole mounting.
The operating force for this switch is between 2.3N and 2.9N.
The minimum operating life for this switch is 1,000,000 cycles.
